Removing Sun Blind

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

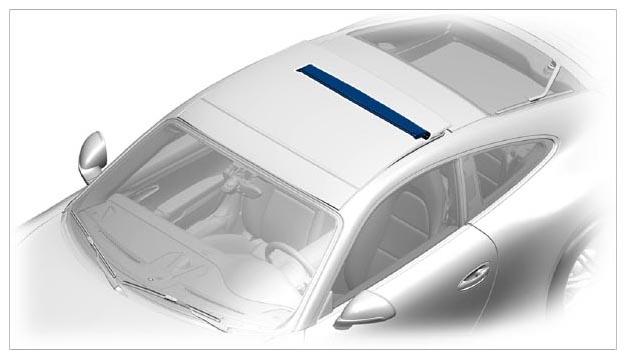

Fig 1: Identifying Roll-Up Sun Blind

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

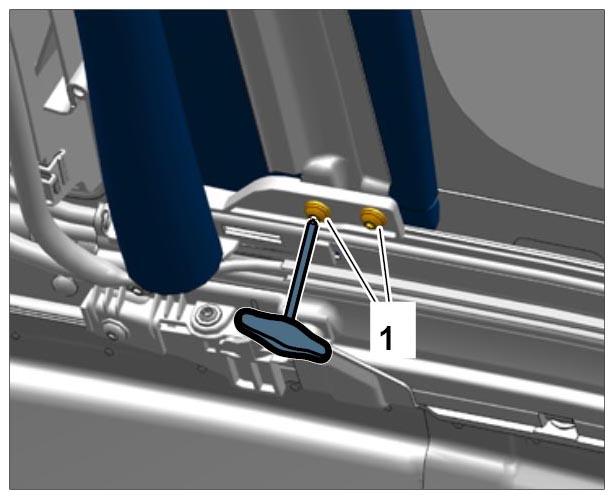

Unscrew and remove fastening screws for transverse bow -1- .

Fig 2: Removing Fastening Screws For Transverse Bow
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully remove transverse bow.

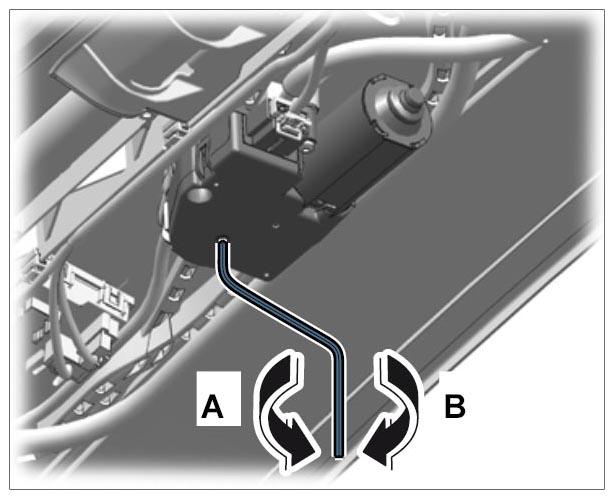

Move sun blind motor as far as it will go manually -A- .

Fig 3: Positioning Sun Blind Manually
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

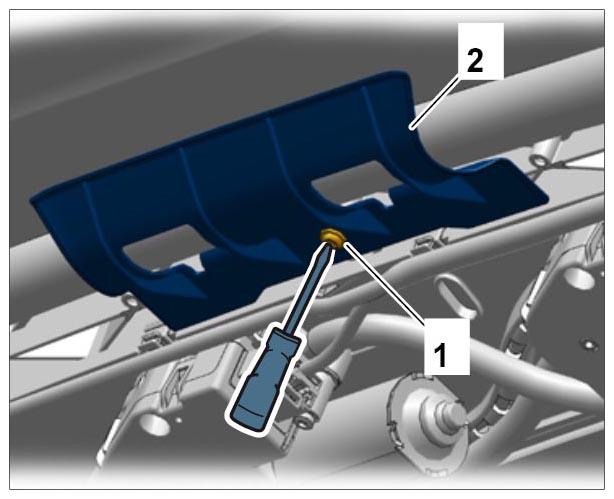

Unscrew and remove fastening screw -1- on sun blind well -2- .

Fig 4: Removing Sun Blind Well Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove sun blind well in a downward direction.

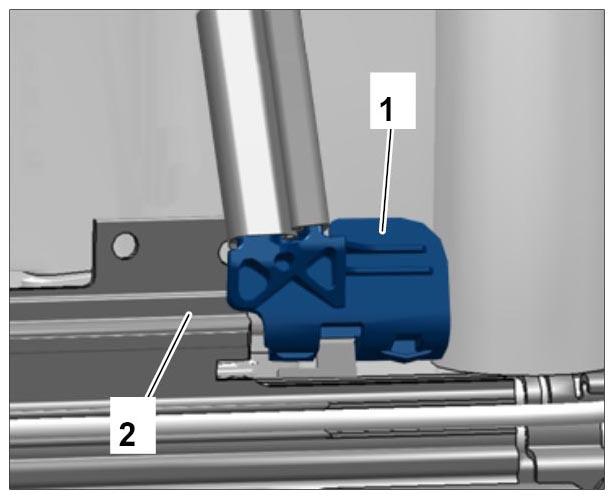

Move sun blind carrier -1- out of the guide rail -2- .

Fig 5: Moving Sun Blind Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

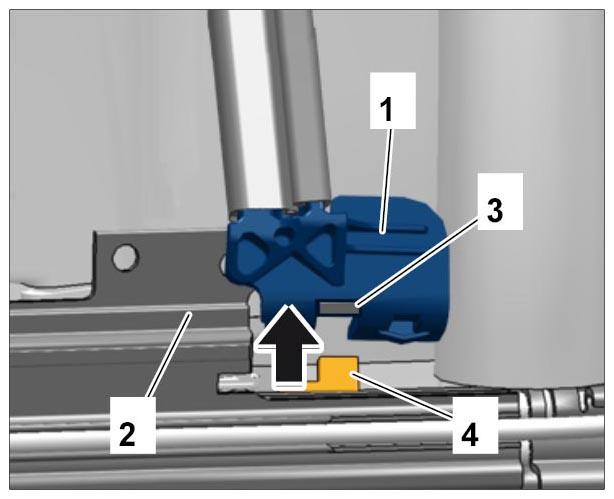

Pull sun blind carrier -1- up out of the sun blind coupling -4- .

Fig 6: Pulling Sun Blind Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

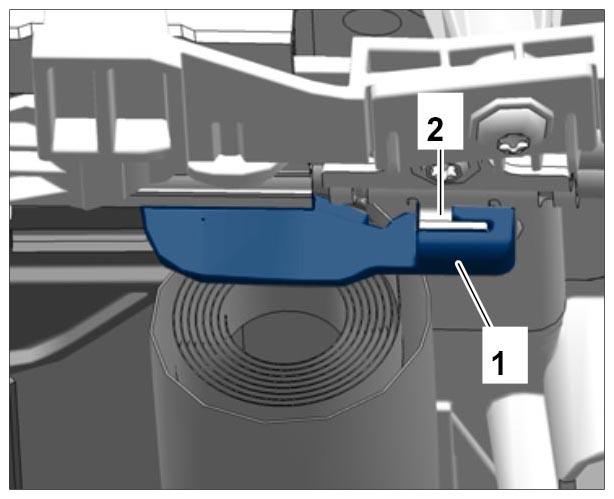

Disengage fabric centering device -1- at the rear of the retaining clip -2- for the guide tube.

Fig 7: Removing Fabric Centering Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove sun blind in a downward direction.
