Fit the starter and tighten the screws -arrows- . Tightening torque 45 Nm (33 ftlb.)

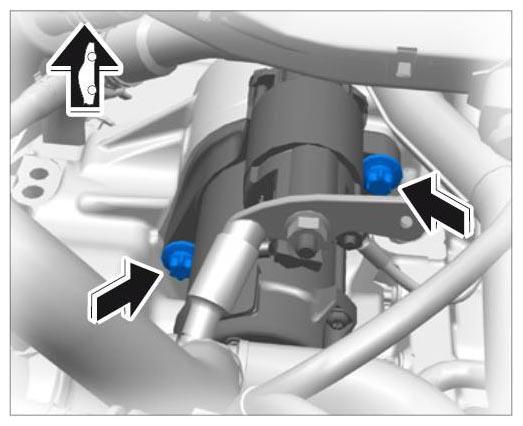

Fig 1: Locating Fastening Screws On Starter (Shown On Carrera)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure electric lines and tighten the nuts.
1. 2.1. Fit B+ line -2- and tighten M8 nut -1- . Tightening torque 18 Nm (13 ftlb.)
2. 2.2. Fit terminal 50 line -4- and tighten M6 nut -3- . Tightening torque 6.5 Nm (5 ftlb.)

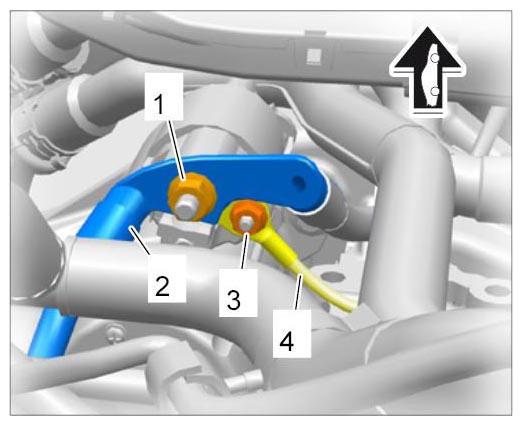

  Fig 2: Identifying Electric Lines On Starter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
GT3 vehicles: Also screw on one M6 screw -3- .
Tightening torque 6.5 Nm (5 ftlb.)

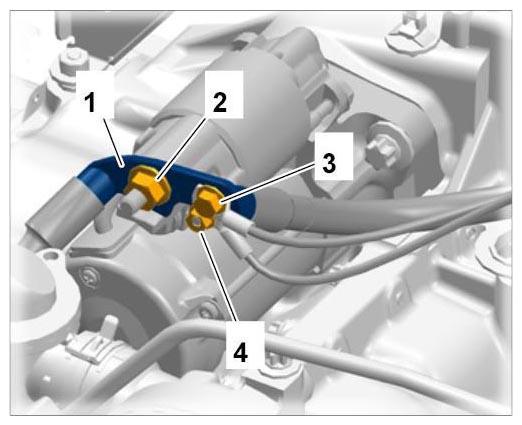

Fig 3: Identifying Electric Lines On Starter - GT3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cap -1- .

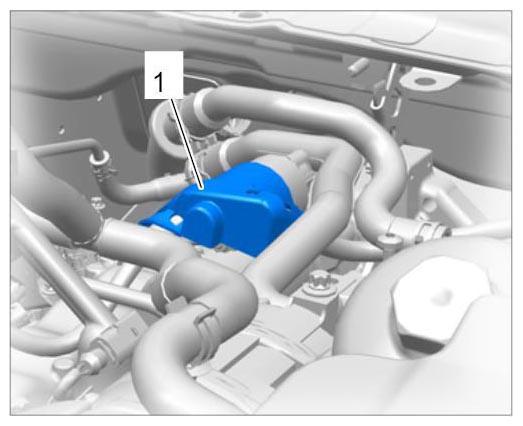

Fig 4: Identifying Cap On Starter
