Installing Air Intake Grille

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route connector for additional brake light in such a way that it cannot get trapped.
  2. Position the air intake grille -2-  on the rear lid -3-  and press it in -arrow-  until the fixing clips click into place.

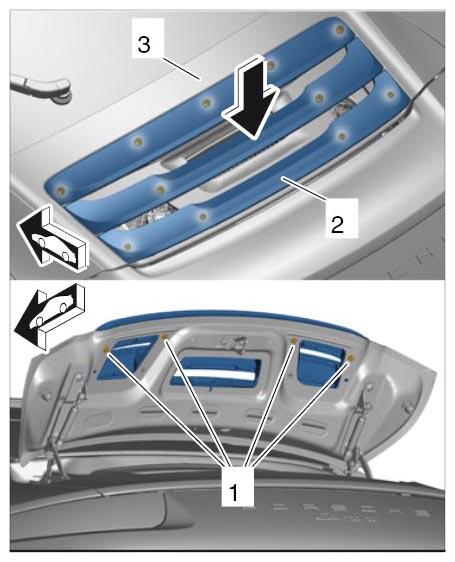

    Fig 1: Installing Air Intake Grille
    G09995016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure the air intake grille -2-  with the fastening screws -1-  . → Tightening torque: 5.7 Nm (4.5 ftlb.)
  4. Close the rear lid.
