Replacing Rear Logo: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Heat the rear apron.
    1. 1.1. Heat the rear apron -1-  close to the logo -2-  using the hot-air blower v.a.g 1416 -3-  .

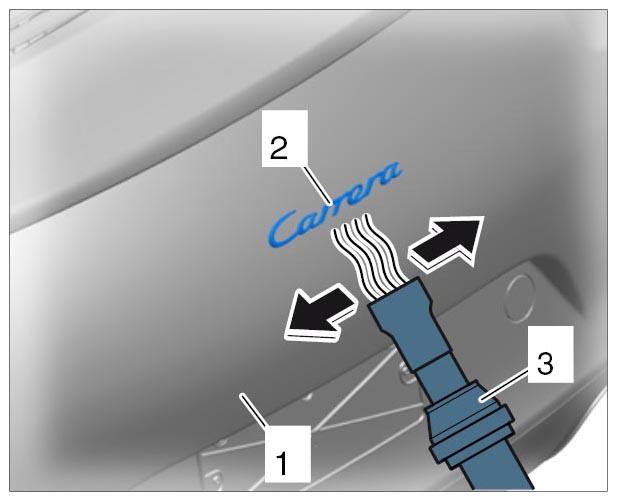

      Fig 1: Removing Rear Logo
      G09995007Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Price off the logo using a plastic spatula.
    1. 2.1. Insert a plastic spatula -1-  under the logo -2-  and price it off.

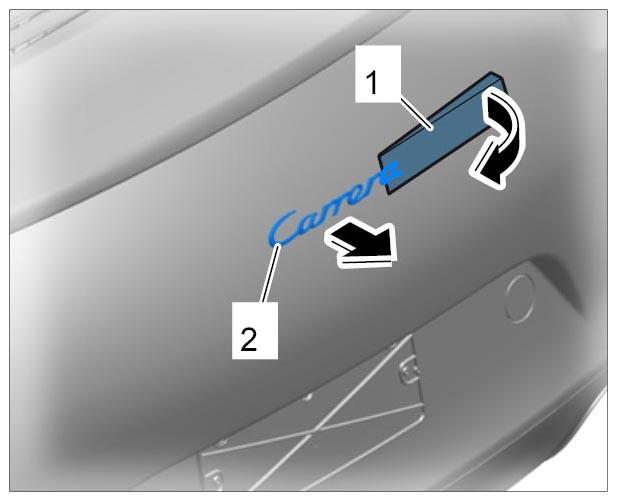

      Fig 2: Removing Logo Using Plastic Spatula
      G09995008Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clean the rear apron.
    1. 3.1. Loosen adhesive residue -1-  on the rear apron -2-  using silicone remover and remove it.

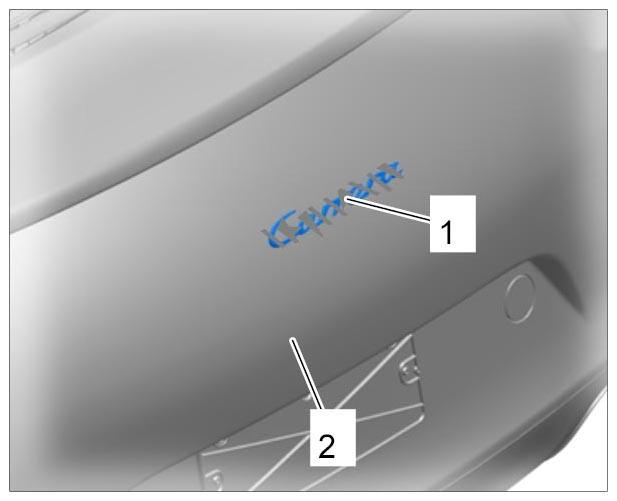

      Fig 3: Identifying Adhesive Residue On Rear Apron
      G09995009Courtesy of PORSCHE CARS NORTH AMERICA, INC.
