Installing Fuel Line

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Coat the thread of the union nuts and sealing cone on the fuel line with OKS 1701 before fitting it.
Insert and secure the fuel line.
1. 2.1. Tighten union nuts 3 turns by hand.
2. 2.2. Fit and tighten screw (M6 x 12) on the retaining clamp.
3. 2.3. Tighten union nuts using the tool shown.
  Initial tightening:
  1. Torque wrench, 10 - 60 Nm (7.5 - 44 ftlb.)
  2. Socket-wrench insert, a/f 17 mm

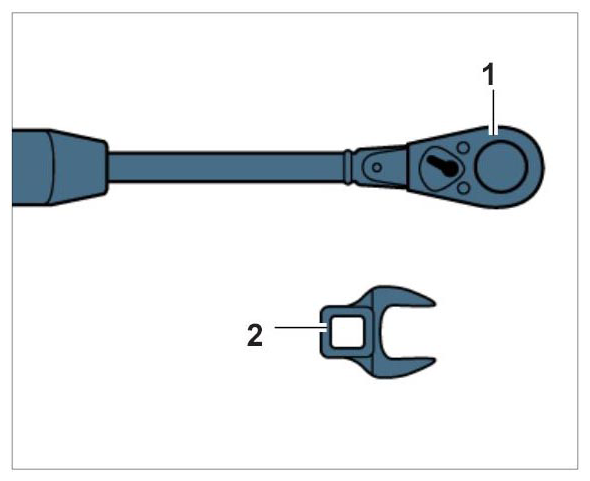

    Fig 1: Identifying Union Nuts And Recommended Tools
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
