Installing High-Pressure Pump
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.

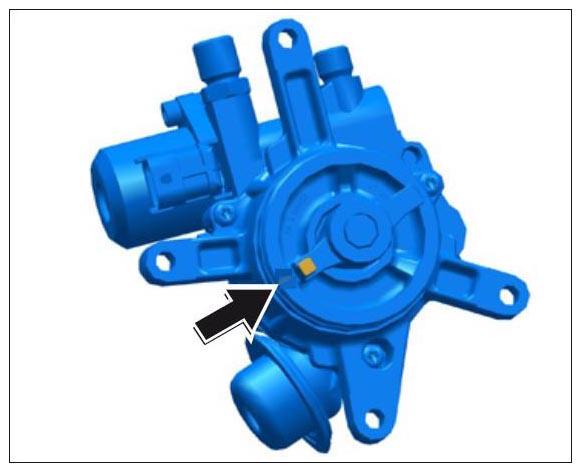

- When refitting the high-pressure pump, install it at its original position -arrow-
(rotor position as marked during removal).
Information
Before installing the high-pressure pump, check the position of the driver and move it into installation position by hand if necessary.

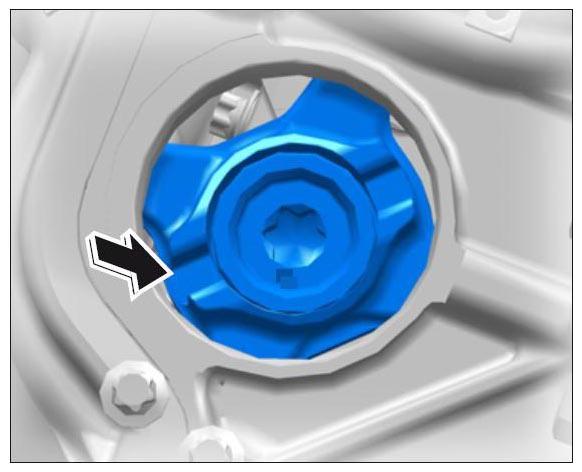

- Position driver for high-pressure pump.
- 2.1. Check position of the outlet sprocket.
It is important that the deep groove is approx. 13.5 mm -arrow-
- 2.2. Turn the driver so that the high driving journal is flush with the deeper recess -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
- 2.1. Check position of the outlet sprocket.
- Fit high-pressure pump.
- 3.1. Replace sealing ring on high-pressure pump and grease with the prescribed lubricant.

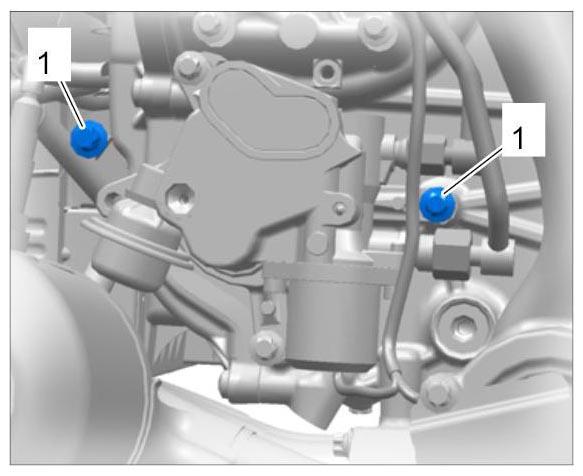

- 3.2. Fit and tighten two external Torx screws (E10, M6 x 25) -1- . Tightening torque 13 Nm (9.5 ftlb.)

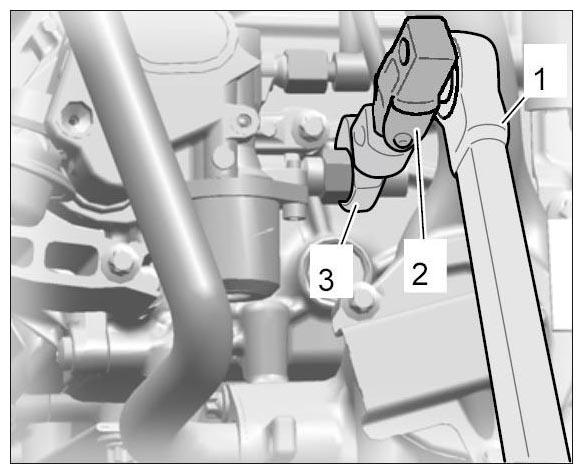

- Tool set: Position of adapter with joint with respect to torque wrench: 90°
- Torque wrench with 3/8-inch head
- Insert adapter with universal joint Nr.98-1 Pos.3
- Open-jawed wrench insert Nr.95 Pos.1 or open-jawed wrench insert Nr.95 Pos.2
Information
- Always perform a leak test in the high-pressure area after opening the fuel system.
- This is particularly important if components are disassembled and replaced.
- The threaded connections of the fuel lines must be coated with OKS 1710 lubricant (Part No. 000.043.303.27) before being screwed back on again.
- Always allow a drying time of 60 minutes for the lubricant!
- Blow residual fuel out of the lines and high-pressure pump (into a fuel-resistant container or cloth) using compressed air before installation.
- The tightening specifications must be strictly observed.
- Fit fuel lines on the high-pressure pump.
- 5.1. Coat union nuts on fuel lines, cone and high-pressure pump screw sockets with lubricant OKS 1700.

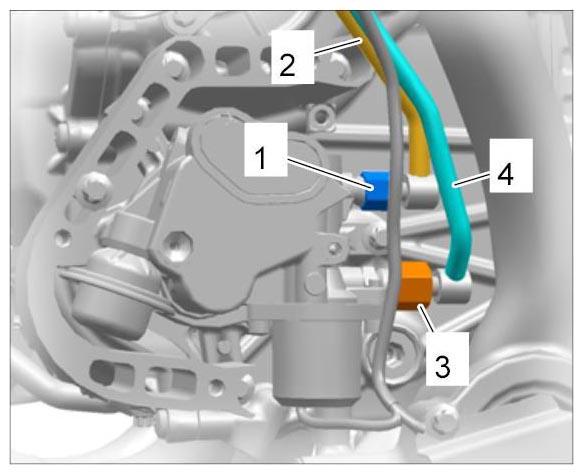

- 5.2. Fit union nut (a/f 14) -1- on fuel high-pressure line -2- by hand and then tighten it. Tightening torque 25 Nm (19 ftlb.)
- 5.3. Fit union nut (a/f 17) -3-
on fuel low-pressure line -4-
by hand and tighten it. Tightening torque 25 Nm (19 ftlb.)
WARNING: Leaking fuel supply lines
- Emerging fuel
- Risk of fire
→ Perform leak test.
- Perform leak test.
→ 200101 CHECKING FUEL SYSTEM (HIGH-PRESSURE SIDE) FOR LEAKS

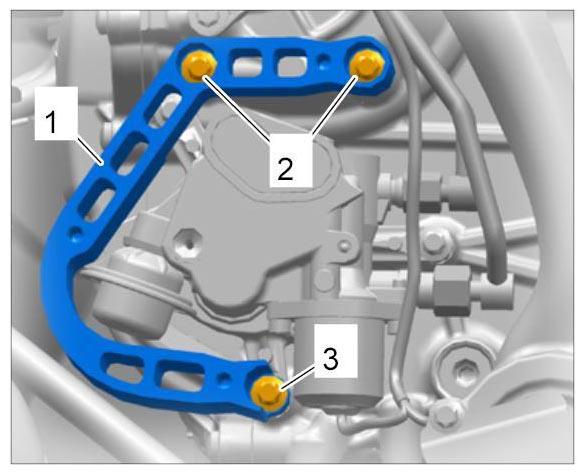

- Fit cover -1-
for high-pressure pump.
- 7.1. Fit and tighten external Torx screws (E10, M6 x 25) -2- . Tightening torque 13 Nm (9.5 ftlb.) .
- 7.2. Fit and tighten external Torx screw (M6 x 40) -3- . Tightening torque 13 Nm (9.5 ftlb.)

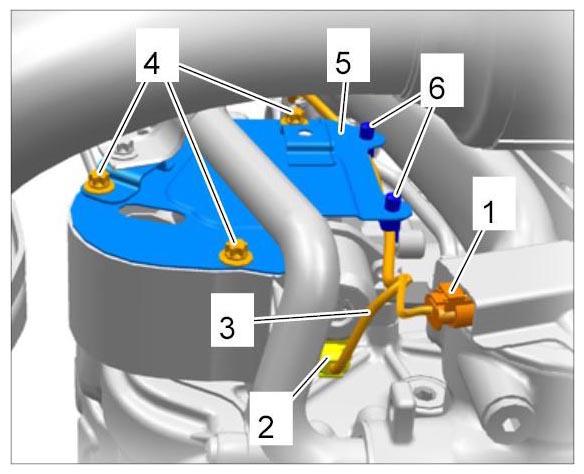

- Fit heat shield for high-pressure pump.
- 8.1. Position heat shield -5- and screw in and tighten three external Torx screws (E10, M6 x 12) -4- . Tightening torque 13 Nm (9.5 ftlb.)
- 8.2. Connect cable plug for coolant temperature sensor -1- .
- 8.3. Insert cable plug for flow control valve -2-
and clip in cable -3-
(-6-
).
Information
Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

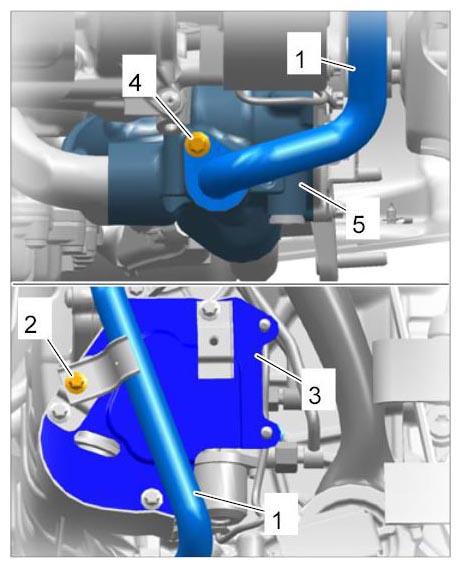

- Secure the coolant pipe -1-
.
- 9.1. Replace sealing rings and grease with the prescribed lubricant.
- 9.2. Position coolant pipe and tighten screw -2- . Tightening torque 13 Nm (9.5 ftlb.)
- 9.3. Secure coolant pipe to heat shield -3- with a screw -2- . Initial tightening 3 Nm (2 ftlb.)
