Installing Exhaust Manifold

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean area -1-  on the cylinder head.

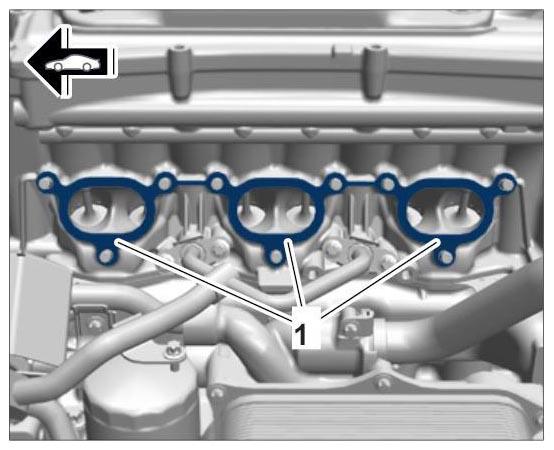

    Fig 1: Identifying Cylinder Head Flange Area
    G09991620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install exhaust manifold.
    1. 2.1. Fit sealing ring -2-  on the catalytic converter and tighten clamp -3-  .
    2. 2.2. Fit exhaust manifold -4-  with new metal seal -1-  on the cylinder head flange.

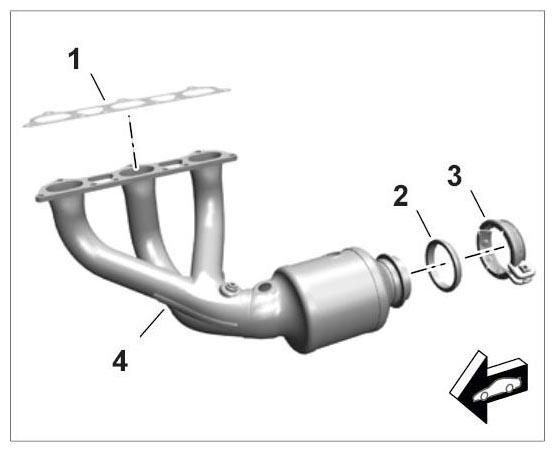

      3. Fig 2: Identifying Exhaust Manifold With Metal Seal
      G09991621Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit fastening screws -1 to 9-  and tighten according to the specified tightening sequence. Tightening torque 30 Nm (22 ftlb.)

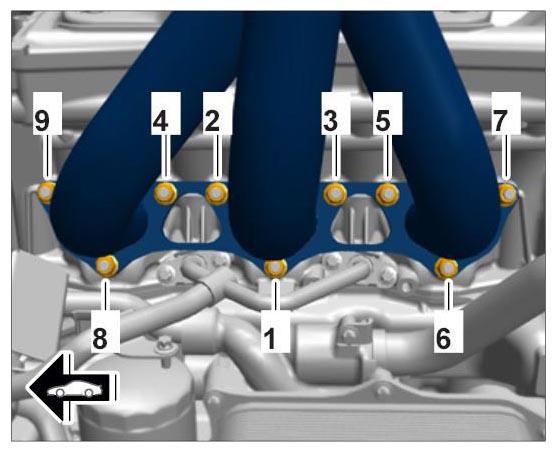

    Fig 3: Exhaust Manifold Nuts Tightening Sequence
    G09991622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Tighten clamp -3-  . → Tightening torque: 23 Nm (17 ftlb.)

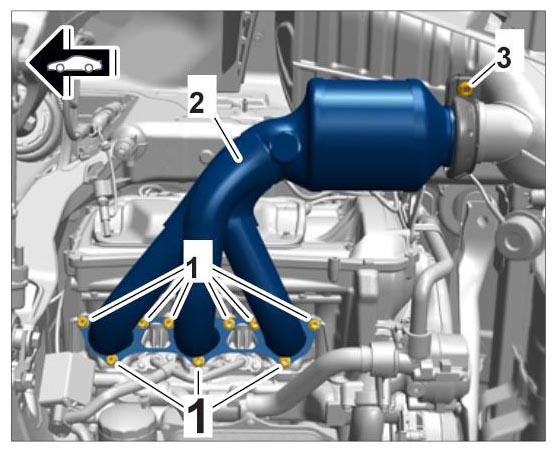

    Fig 4: Identifying Exhaust Manifold And Cylinder Bank 1
    G09991623Courtesy of PORSCHE CARS NORTH AMERICA, INC.
