Installing Bracket For Oil-Water Heat Exchanger

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove stoppers from the bores.
Grease new O-rings with Kluber Syntheso Glep (Porsche Part No. 000.043.204.68) and fit them.
Install bracket -1- for oil/water heat exchanger.
1. 3.1. Position the bracket and check that the O-rings are seated correctly.
2. 3.2. Fit and tighten six M6 x 45 screws -2- and one M6 x 60 screw -1- . Tightening torque 13 Nm (9.5 ftlb.)

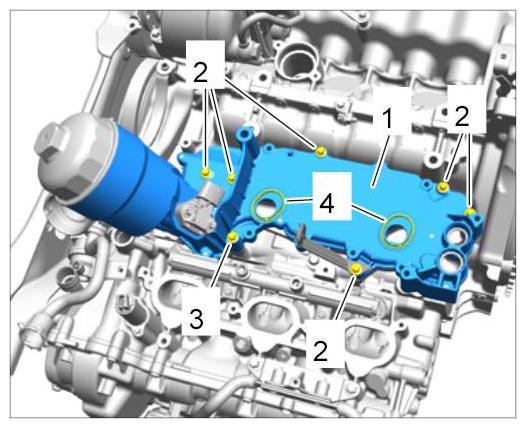

  Fig 1: Identifying Oil/Water Heat Exchanger Bracket Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
