Installing Side Direction Indicator Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Observe instructions in Bulb table and installation instructions. → 9423IN BULB TABLE AND INSTALLATION INSTRUCTIONS

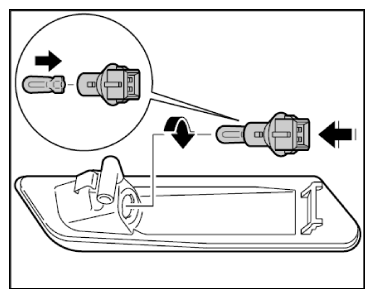

Insert the new bulb into the holder.

Fig 1: Installing Bulb
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw the holder with the bulb into the direction indicator light.

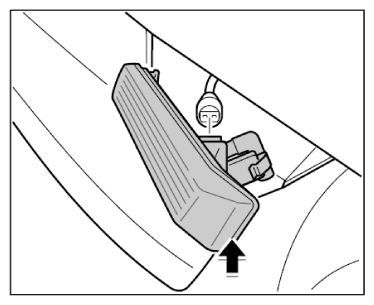

Insert the electric plug connection into the direction indicator light until the connector can be felt to engage.

Fig 2: Connecting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

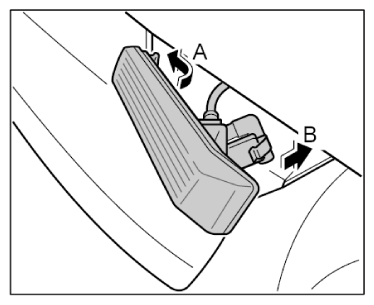

Engage the direction indicator light in the front apron -A- and clip it in -B- .

Fig 3: Installing Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check operation of direction indicator light.
