Installing Glove Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

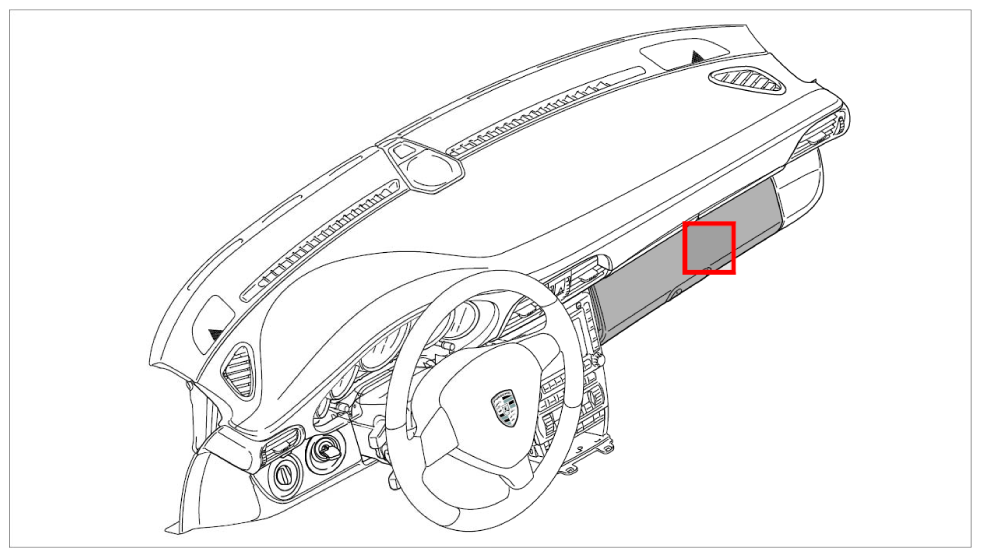

Fig 1: Identifying Glove Compartment Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Swivel in glove compartment -1- at the bottom until the electrical plug connection -2- can be connected.

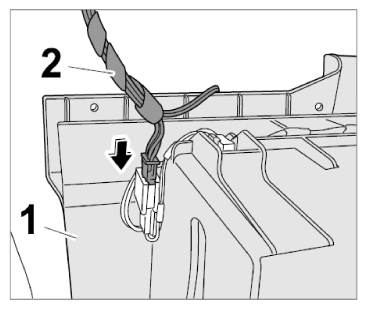

Fig 2: Locking Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electrical plug connection -2- (-arrow- ).
Swivel glove compartment -1- into the instrument panel -arrow- and secure with the top fastening screws -2- . Tightening torque → Final tightening: 2 ftlb.

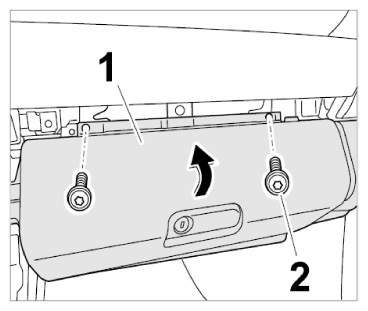

Fig 3: Installing Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw right fastening screws -2- into the glove compartment -1- . Tightening torque → Final tightening: 2 ftlb.

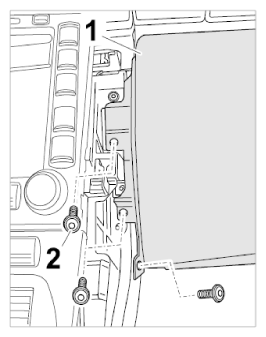

Fig 4: Securing Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach electrical wire to glove compartment -arrow- .
Screw left fastening screws -2- into the glove compartment -1- . Tightening torque → Final tightening: 2 ftlb.

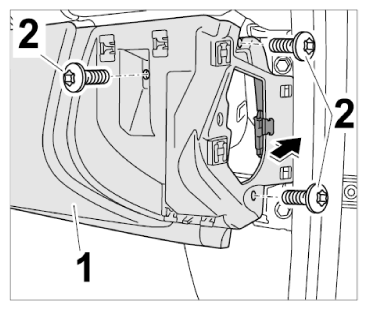

Fig 5: Securing Glove Compartment (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
