Removing Alarm Siren

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

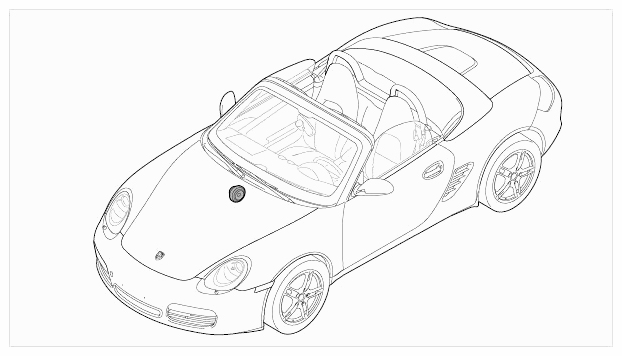

Fig 1: Identifying Alarm Horn
G09593688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release connector -2-  and remove it -arrows a-  .
  2. Counter at the fastening screw -4-  if necessary and screw off the fastening nut -3-  .
  3. Remove alarm horn -1-  .

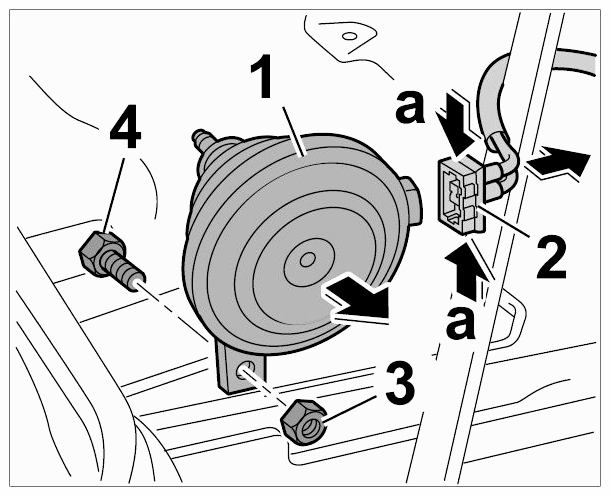

    4. Fig 2: Removing Alarm Horn
    G09593689Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Release connector -2-  and remove it -arrows a-  .
  2. Counter at the fastening screw -4-  and unscrew fastening nut -3-  .
  3. Remove alarm siren -1-  .

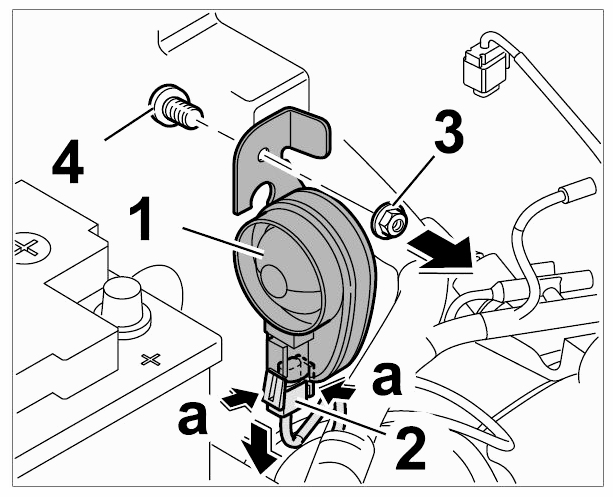

    4. Fig 1: Removing Alarm Siren
    G09593690Courtesy of PORSCHE CARS NORTH AMERICA, INC.
