Installing Contact Switch For Glove Compartment Light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

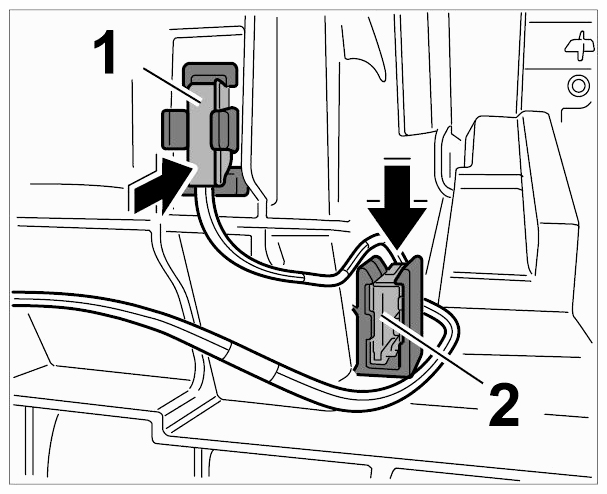

Press the door switch for the glove compartment light -1- and the connector socket -2- in the mounting points, until they can be felt to engage.

Fig 1: Pressing Door Switch For Glove Compartment Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

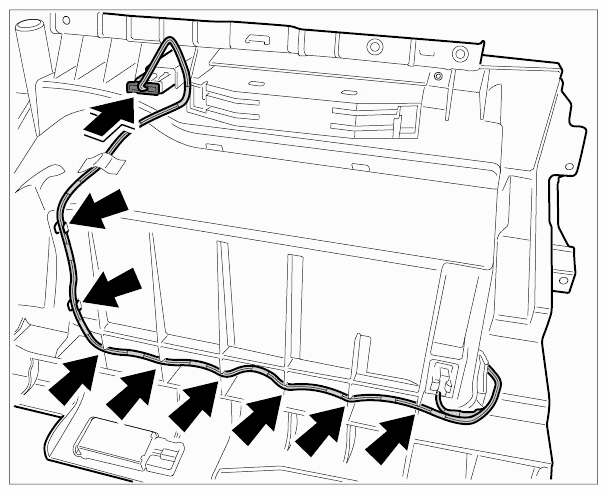

Lay the wiring harness and press in the mounting points on the glove compartment -Arrows-

Fig 2: Clipping In Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the glove compartment light plug until it is felt to engage.
