Removing Lines For ATF Cooling

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation "location" of "ATF" lines

Removal of line -1- -1-

1. Lower the automatic transmission.

   > 373519 REMOVING AND INSTALLING TRANSMISSION - section on "Removing"

2. Loosen holder -1-  for ATF lines at the front of the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

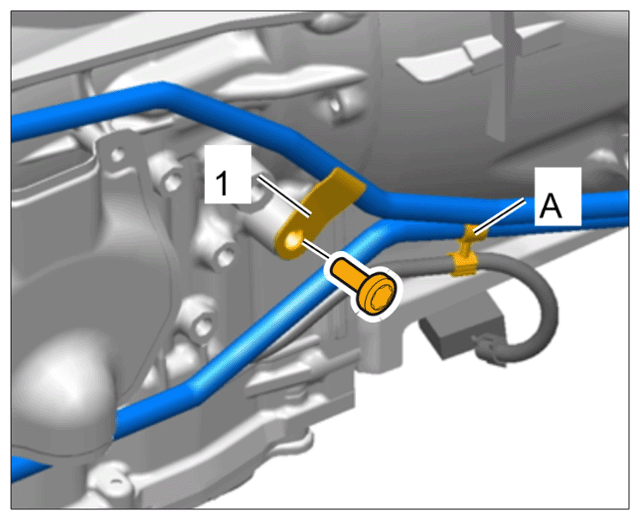

   Holder for ATF lines at front of transmission.

3. Unclip ATF lines -A-  .
4. Place a suitable container underneath to catch emerging ATF.

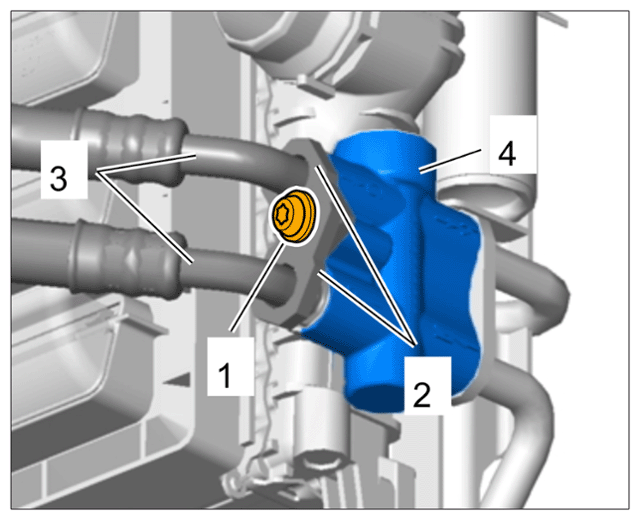

   Loosen the front fastening screw -1-  for the ATF lines -2-  on the ATF heat exchanger -3-  and pull it out.

   Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ATF lines at top

5. Lift the automatic transmission using a suitable jack.

   > 373519 REMOVING AND INSTALLING TRANSMISSION - section on "Installing"

   Use the old screws to secure the transmission.

6. Loosen the fastening screw -1-  on the holder -2-  for ATF lines -3-  at the thermostat -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ATF lines from thermostat to transmission

7. Place a suitable container underneath to catch emerging ATF.

   Pull ATF lines out of the thermostat.

   Close off the ATF lines and bores at the thermostat using suitable stoppers.

8. Remove engine carrier.

   > 103019 Removing and installing engine carrier - section on "REMOVING "

9. Detach holder -1-  for ATF lines at the front of the engine.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

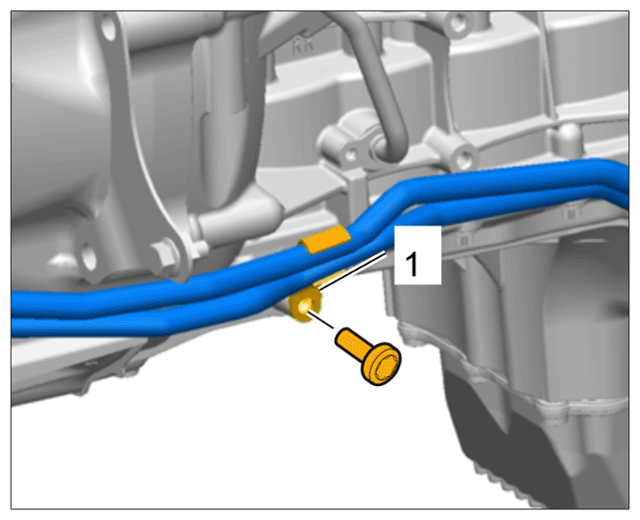

   Holder for ATF lines at front of engine

10. Detach holder -1-  for ATF lines at the rear of the engine.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for ATF lines at rear of engine

11. Remove ATF line out of the vehicle and set it aside.

    Removal of line - 2 - -2-.

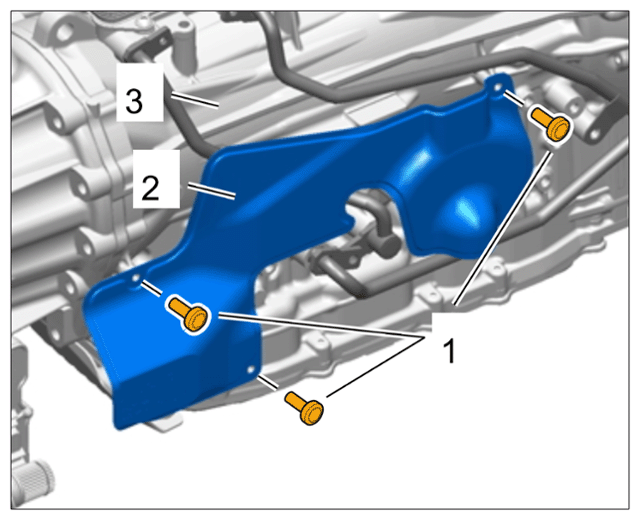

12. Loosen fastening screws -1-  for the heat shield -2-  at the automatic transmission -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for automatic transmission

13. Place a suitable container underneath to catch emerging ATF.

    Loosen the fastening screw -1-  for the ATF lines -2-  at the bottom of the transmission -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching ATF lines at bottom

14. Remove rear ATF lines.

    Close off the ATF lines and transmission bores using suitable stoppers.

15. Loosen the fastening screw -1-  on the holder -2-  for ATF lines -3-  at the thermostat -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF lines from thermostat to transmission

16. Place a suitable container underneath to catch emerging ATF.

    Pull ATF lines out of the thermostat.

    Close off the ATF lines and bores at the thermostat using suitable stoppers.

17. Remove engine carrier.

    > 103019 Removing and installing engine carrier - section on "REMOVING "

18. Detach holder -1-  for ATF lines at the front of the engine.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for ATF lines at front of engine

19. Detach holder -1-  for ATF lines at the rear of the engine.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for ATF lines at rear of engine

20. Unclip ATF lines -A-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for ATF lines at front of transmission.

21. Remove ATF line out of the vehicle and set it aside.

    Removal of line - 3 - -3-.

22. Lower the automatic transmission.

    > 373519 REMOVING AND INSTALLING TRANSMISSION - section on "Removing"

23. Loosen fastening screws -1-  for the heat shield -2-  at the automatic transmission -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for automatic transmission

24. Remove heat shield.
25. Place a suitable container underneath to catch emerging ATF.

    Loosen the fastening screw -1-  on the ATF lines -2-  at the bottom of the transmission -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching ATF lines at bottom

26. Remove front ATF line.

    Close off the ATF lines and transmission bores using suitable stoppers.

27. Place a suitable container underneath to catch emerging ATF.

    Loosen the rear fastening screw -1-  for the ATF lines -2-  on the ATF heat exchanger -3-  and pull it out.

    Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF lines at top
