Hydraulic Pump V8 4.8 Dfi
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| No. 1: Hydraulic pump to engine (support) | M8 x 35 thread | Tightening torque | 23 (17 ftlb.) Nm | |
| No. 2: Pulley to hydraulic pump | M8 x 16 thread | Tightening torque | 23 (17 ftlb.) Nm | |
| Intake pipe to hydraulic pump | M6 x 12 thread | Tightening torque | 10 (7.5 ftlb.) Nm | |
| Expansion hose to hydraulic pump | Tightening torque | 32 (24 ftlb.) Nm | +/- 4 (3 ftlb.) Nm | |
| Reservoir | Tightening torque | 10 (7.5 ftlb.) Nm |

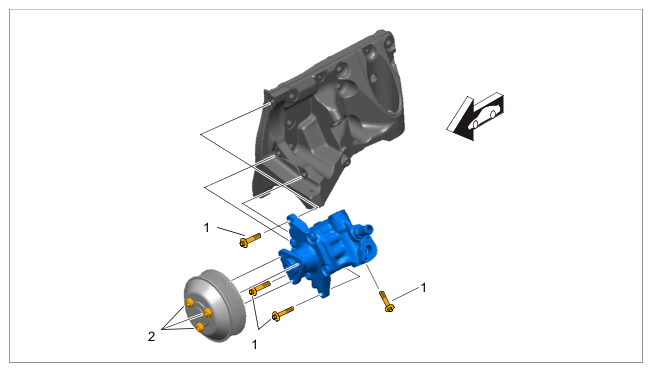

Hydraulic pump V8
