Height Adjustment Control Unit
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location |
Description |
Type |
Basic value |
Tolerance |
| Height adjustment control unit to steering column |
Screw/Item 1 |
Tightening torque |
3.6 (2.6 ftlb.) Nm |
+/- 0.5 (0.35 ftlb.) Nm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

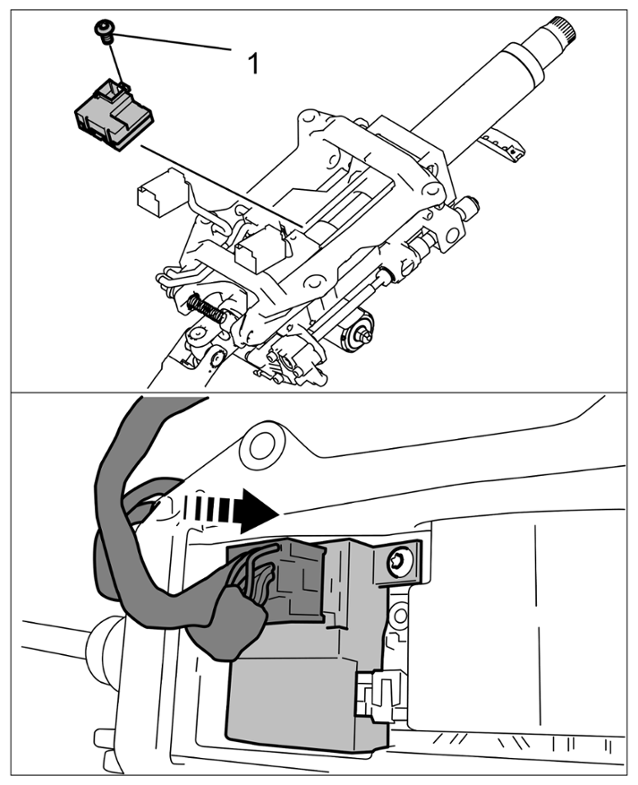

Height adjustment control unit |
