Removing Oil Pan

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove all screws from the oil pan. Remove oil pan.

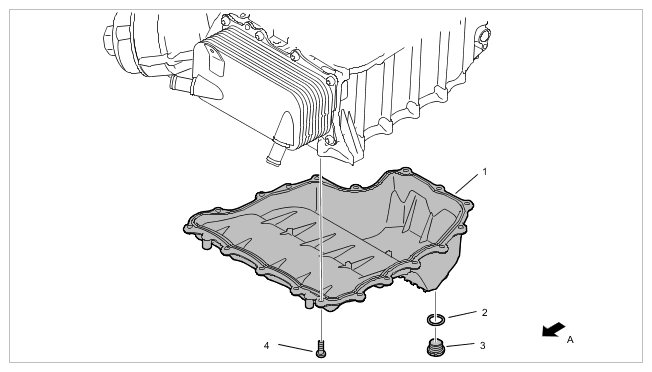

Fig 1: Oil Pan Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan

1	Oil pan with reusable seal inserted
2	Sealing ring
3	Oil drain plug, M18 x 1.5
4	Screw, M6 x 20
A	Direction of travel
