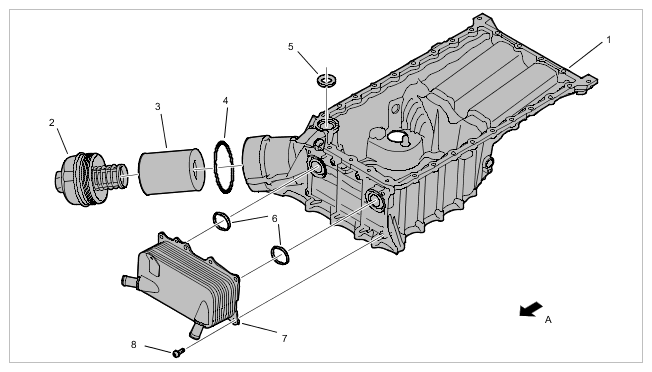

Oil/coolant heat exchanger, oil filter
| 1 | Oil guide housing |
| 2 | Oil-filter housing |
| 3 | Oil filter |
| 4 | Oil-filter sealing ring |
| 5 | Oil duct adapter (cannot be replaced) |
| 6 | Heat exchanger seal |
| 7 | Oil/coolant heat exchanger |
| 8 | Screw, M6 x 20; self-tapping screws ex-works; metric screws can also be used |
| A | Direction of travel |

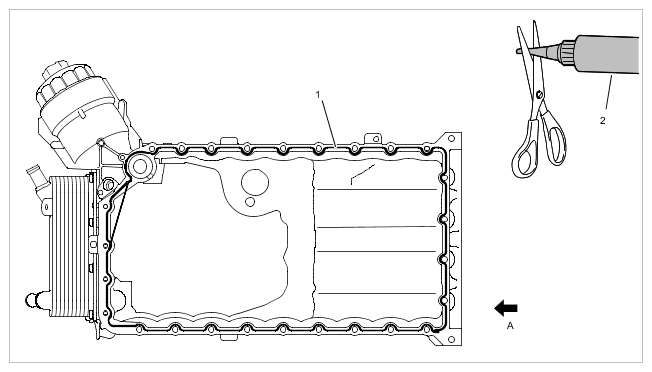

Applying sealant to oil guide housing
| 1 | Sealant application (geometry, 1-mm bead of sealant) |
| 2 | Doboseal sealing compound |
| A | Direction of travel |

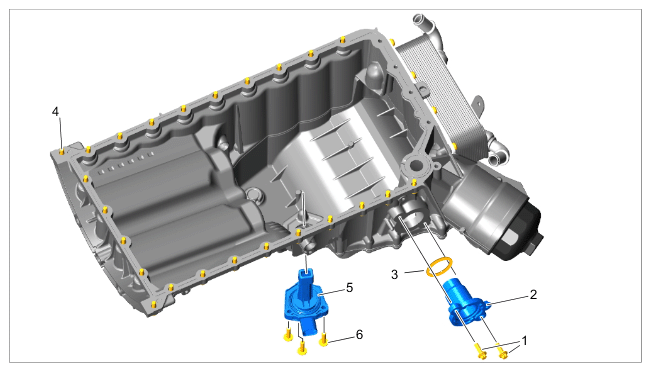

Oil guide housing with accessories
| 1 | Screws, M6 x 20 |
| 2 | Sealing flange |
| 3 | O-ring |
| 4 | M6 screw; oil level sensor to oil guide housing |
| 5 | Oil level sensor |
| 6 | M6 screw; oil guide housing to lower part of crankcase |
