Removing Oil Pressure Control Valve (Solenoid Valve) On 4.8-Litre Dfi Engines

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

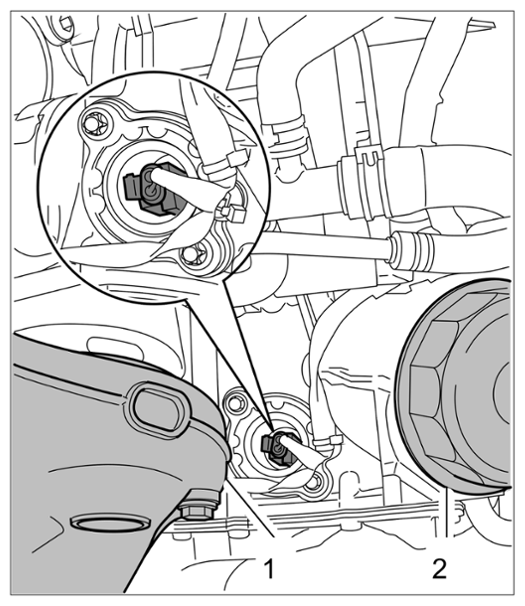

The oil pressure control valve is fitted in the oil guide housing under the generator between the engine carrier -1- and oil filter -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of oil pressure control valve

Carefully grip the cable plug on the oil pressure control valve with a pointed-nose pliers and release it. Pull off cable plug.

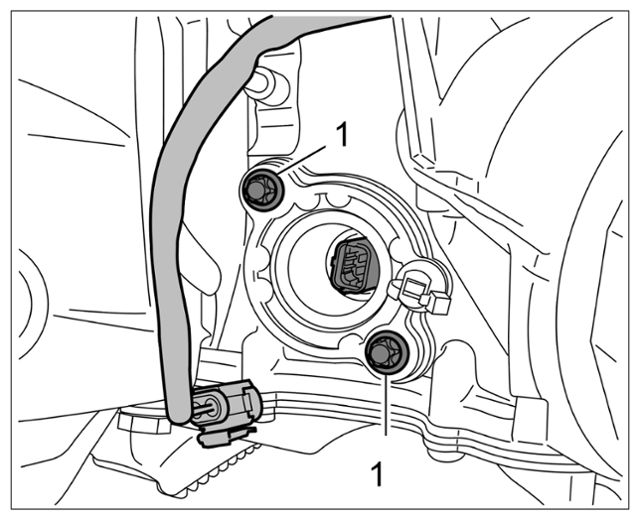

Expose cable and set it aside. -cable-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable in front of oil pressure control valve
Remove screws on joint flange. -1-

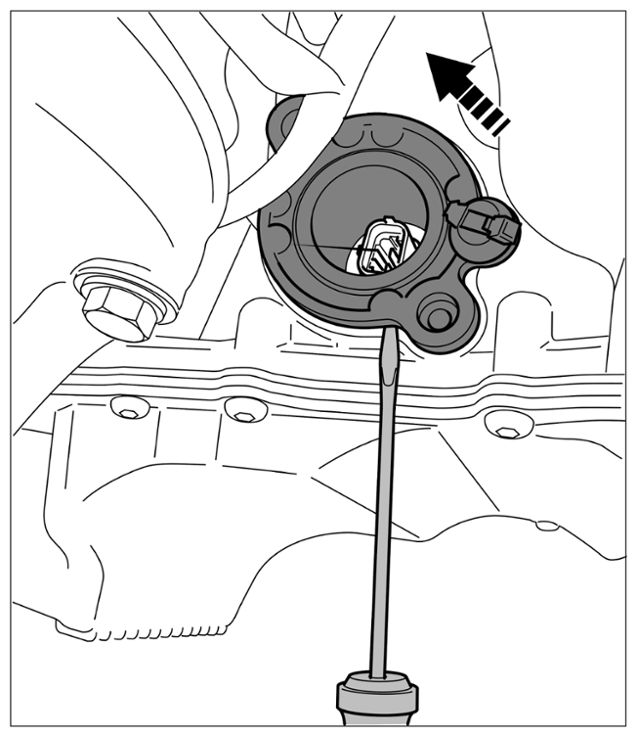

Carefully lever off the joint flange with a screwdriver > Levering off joint flange . Overcome the resistance of the two sealing rings on the oil pressure control valve while doing this.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Levering off joint flange

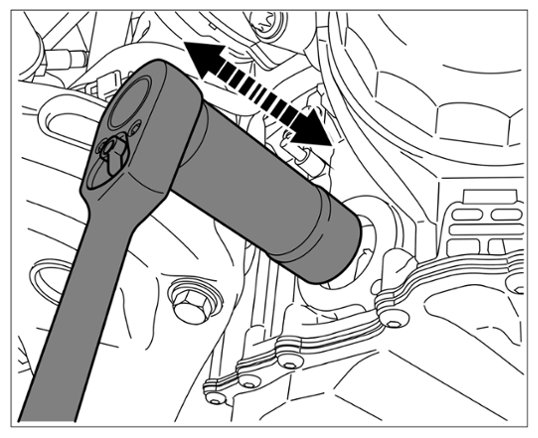

Fit special socket > 9753 - socket-wrench insert on a ratchet through the opening in the oil guide housing and loosen cap screw on oil pressure control valve. > Using special socket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using special socket

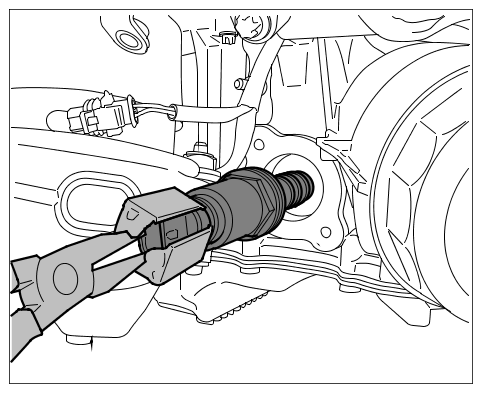

Grip oil pressure control valve with a > 9235 - relay puller and turn carefully to remove it. > Removing/fitting oil pressure control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing/fitting oil pressure control valve
