Component Overview
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

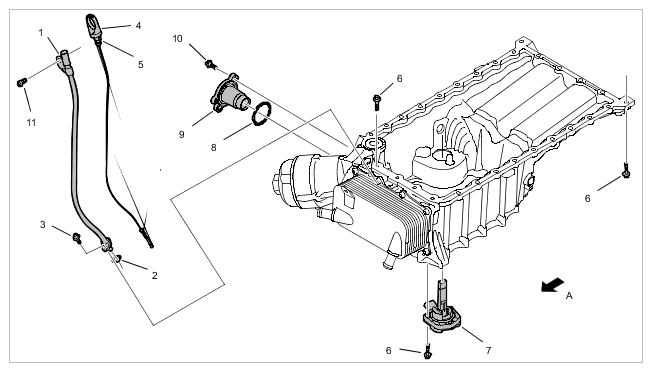

Oil guide housing with accessories
| 1 | Guide tube |
| 2 | O-ring |
| 3 | Screw, M6 x 16 |
| 4 | Oil dipstick |
| 5 | O-ring |
| 6 | Screw, M6 x 25 |
| 7 | Oil-level sensor |
| 8 | O-ring |
| 9 | Joint flange for solenoid valve |
| 10 | Screw, M6 x 20 |
| 11 | Screw, M6 x 16 |
Oil pump, M48 (Turbo shown)
| 1 | Oil pump with suction stage (Turbo shown) |
| 2 | Screw, M8 x 22 |
| 3 | Oil pump sprocket |
| 4 | Cap screw, M36 x 1.5 x 12 |
| 5 | Solenoid valve |
| 6 | O-ring (grease before fitting) |
| 7 | Dowel sleeve |
| 8 | Screw, M6 x 45 |
| 9 | Sprocket cover |
| 10 | Screw, M6 x 16 |
| 11 | Drive chain |
| 12 | Connection for intake manifold joining socket |

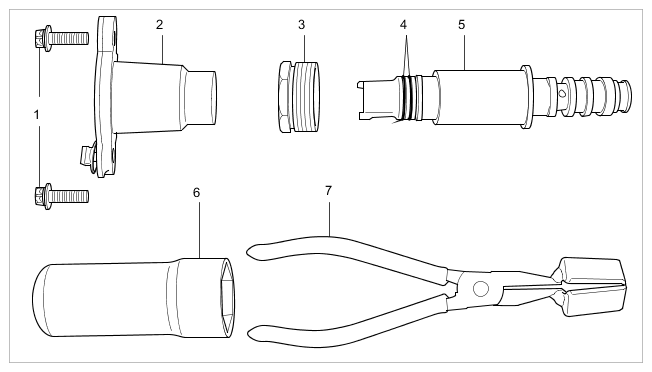

Oil pressure control valve and tool
| 1 | Screw, M6 x 20 |
| 2 | Joint flange with sealing ring |
| 3 | Cap screw, M36 |
| 4 | Oil sealing ring with engine oil |
| 5 | Solenoid valve/oil pressure control valve |
| 6 | Special socket > 9753 - socket-wrench insert |
| 7 | Puller > 9235 - relay puller |
