Removing Oil Pump: Notes

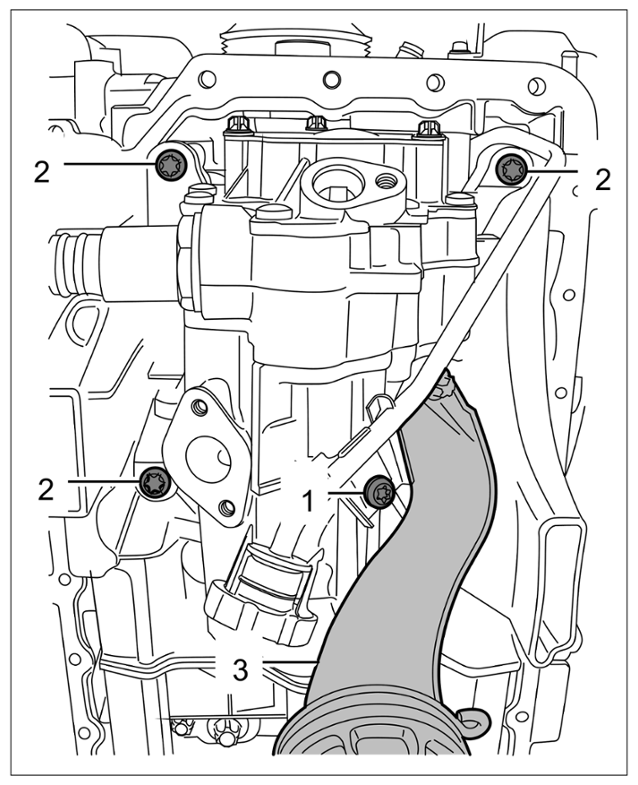

1. Disconnect lines at the oil pump.
   1. 1.1 Remove the two screws on the intake manifold and take the intake manifold off the oil pump. -3-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil return

2. Remove the sprocket cover for the oil pump

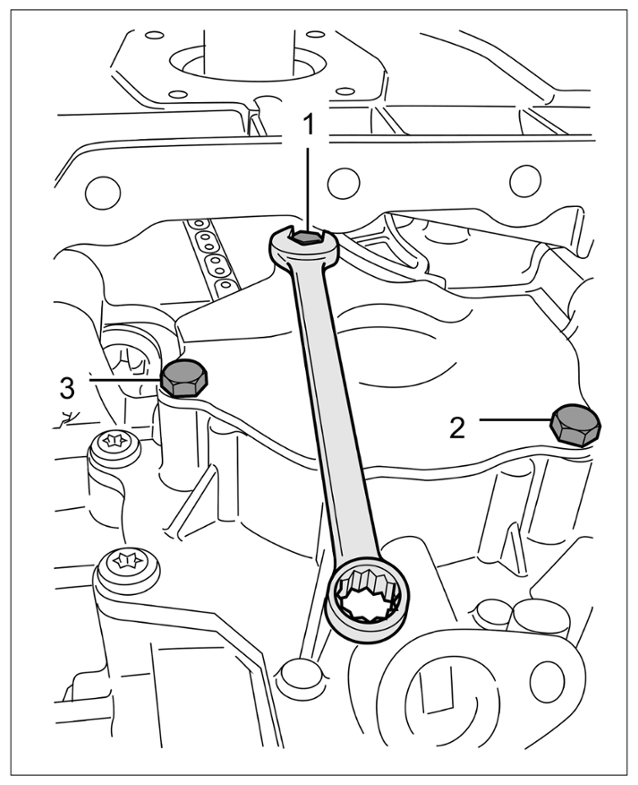

   1. 2.1 Loosen the top screw -1-  using an open-ended wrench until the sprocket cover is released. Remove the two remaining screws. -2 and 3-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Sprocket cover mounting

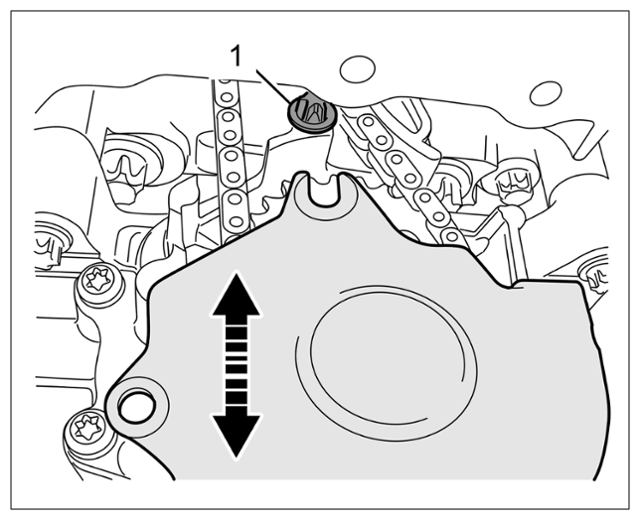

   2. 2.2 Pull the sprocket cover down and off. The top hole is open. > Top threaded joint on sprocket cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Top threaded joint on sprocket cover

3. Remove the oil pump drive sprocket.

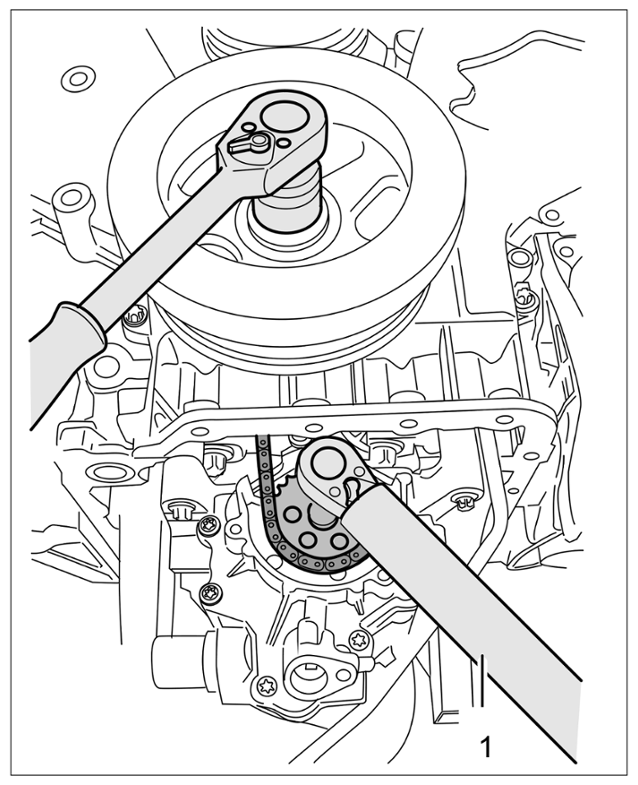

   1. 3.1 Position vibration balancer with screw tightened hand-tight on the crankshaft stub. Attach change-over ratchet. > Sprocket screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Sprocket screw

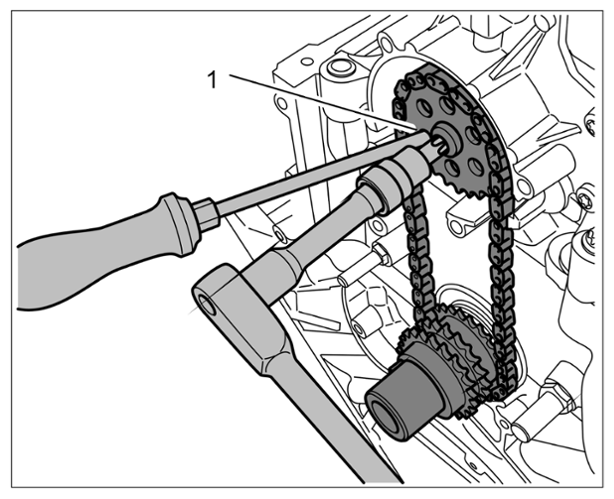

   2. 3.2 Loosen screw on sprocket. Use an extension if necessary because the screw is very tight -1-  . Counter at the vibration balancer using the change-over ratchet. Screw is tightened beyond the elastic limit. > Countering oil pump pinion  Use a screwdriver to counter at the oil pump through a bore in the drive pinion if necessary. The loosened screw must not be re-used.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Countering oil pump pinion

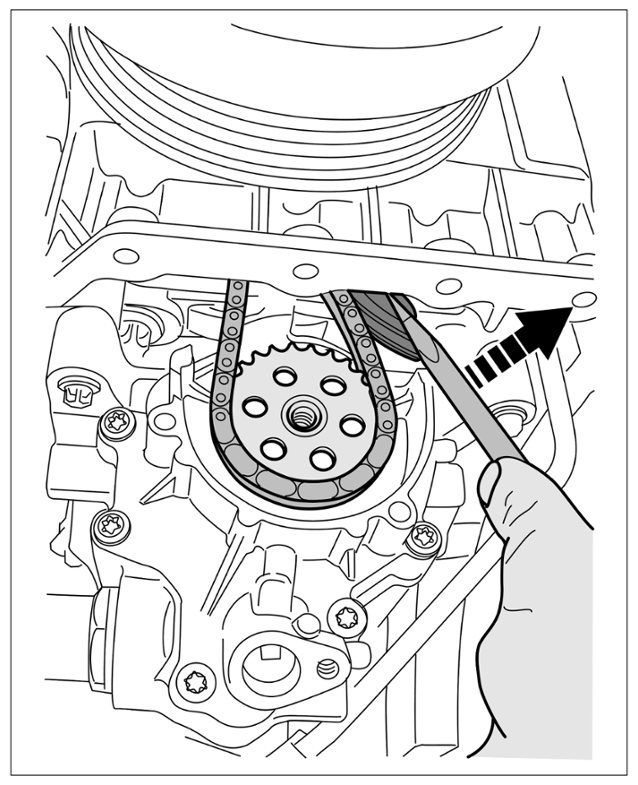

4. Press off small tensioning rail on the chain -arrow-  using a screwdriver > Oil pump drive chain  and remove the sprocket from the pump. Loosen the tensioning rail slowly. The chain remains fitted.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pump drive chain

5. Remove oil pump
   1. 5.1 Unscrew screws on the oil pump -2-  . Hold the oil pump securely.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Oil pump screws

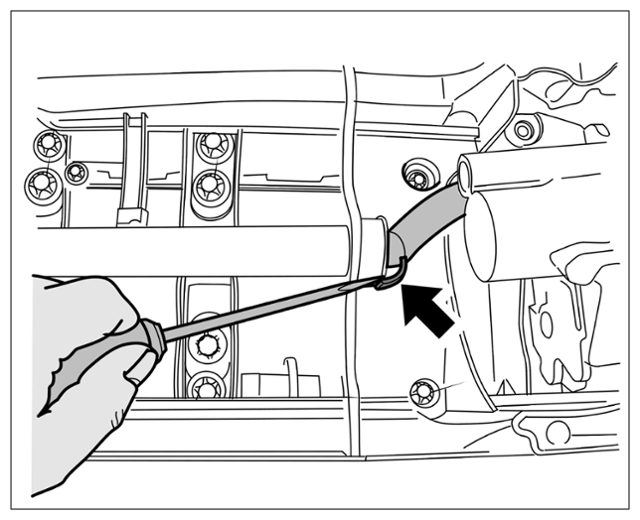

   2. 5.2 Carefully loosen the locking hook on the joining socket using a screwdriver > Disconnecting pipe  and carefully remove the oil pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pipe
