Component Overview

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

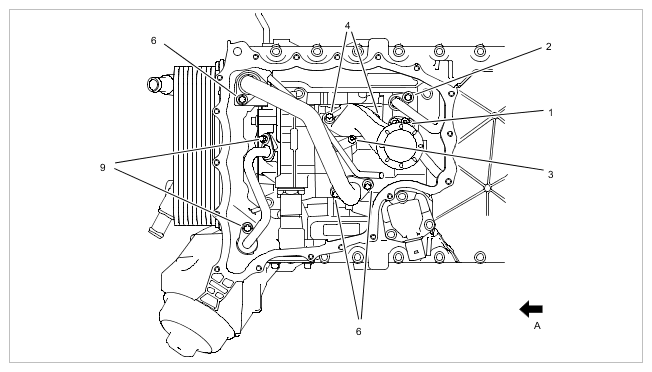

Fig 1: Oil Lines Components Location - Intake Manifold On Turbo Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil lines, intake manifold on turbo engine

1	Mount for oil extraction line for turbocharger, cylinders 1 to 4
2	Mount for oil extraction line for turbocharger, cylinders 5 to 8
3	Mount for oil separator vent line, cylinders 5 to 8
4	Mount for oil pump intake manifold
6	Mount for oil pressure pipe
9	Mount for oil regulating line
A	Direction of travel

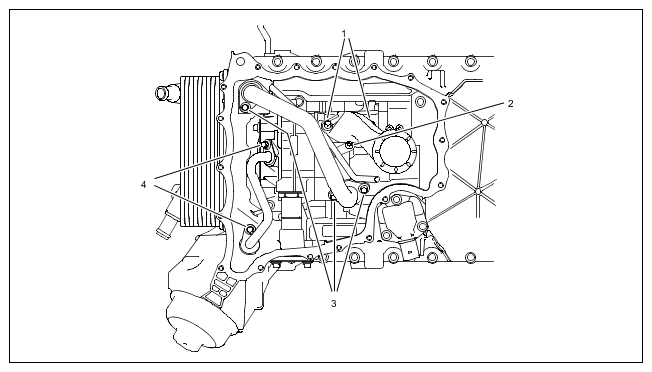

Fig 2: Oil Lines Components Location - Intake Manifold On Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil lines, intake manifold on naturally aspirated engine

1	Mount for oil pump intake manifold
2	Mount for oil separator vent line, cylinders 5 to 8
3	Mount for oil pressure pipe
4	Mount for oil regulating line

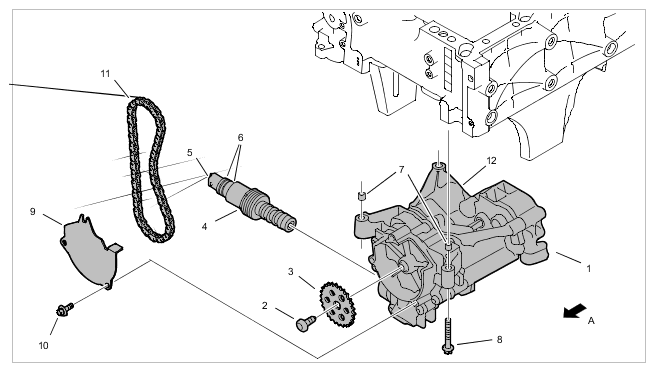

Fig 3: Oil Pump Components Location - Turbo Engine With Oil Extraction Stage

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump on turbo engine with oil extraction stage

1	Oil pump with extraction stage
2	Screw, M8 x 22; replace
3	Oil pump sprocket
4	Cap screw, M36 x 1.5 x 12
5	Solenoid valve
6	O-ring (grease before fitting)
7	Dowel sleeve
8	Screw, M6 x 45
9	Sprocket cover
10	Screw, M6 x 16
11	Drive chain
12	Connection for intake manifold joining socket
A	Direction of travel

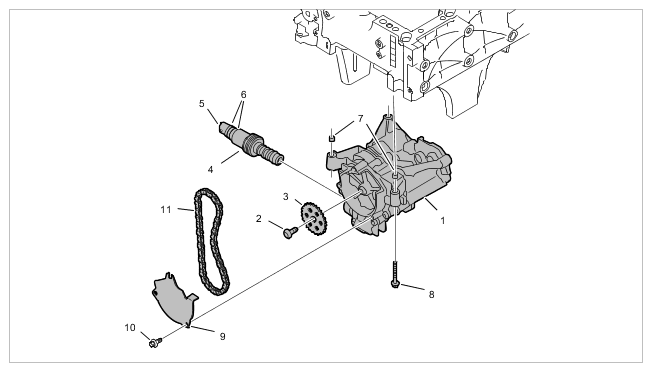

Fig 4: Oil Pump Components Location - Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump on naturally aspirated engine

1	Oil pump
2	Screw, M8 x 22; replace
3	Oil pump sprocket
4	Cap screw, M36 x 1.5 x 12
5	Solenoid valve
6	O-ring (grease before fitting)
7	Dowel sleeve
8	Screw, M6 x 45
9	Sprocket cover
10	Screw, M6 x 16
11	Drive chain
