Removing Gas-Discharge Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

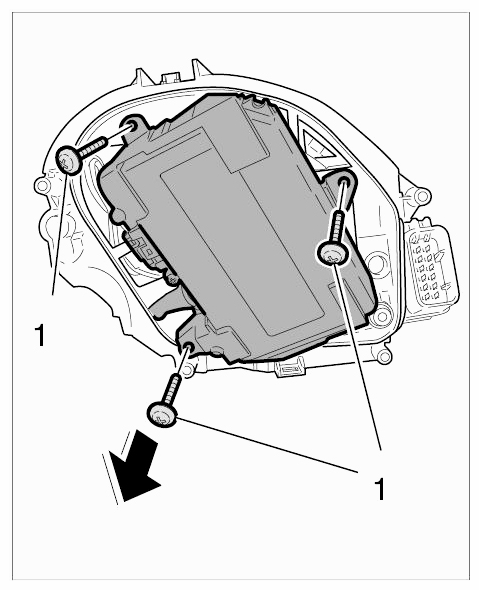

Unscrew the three fastening screws -1- for the control unit holder.

Fig 1: Removing Gas-Discharge Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

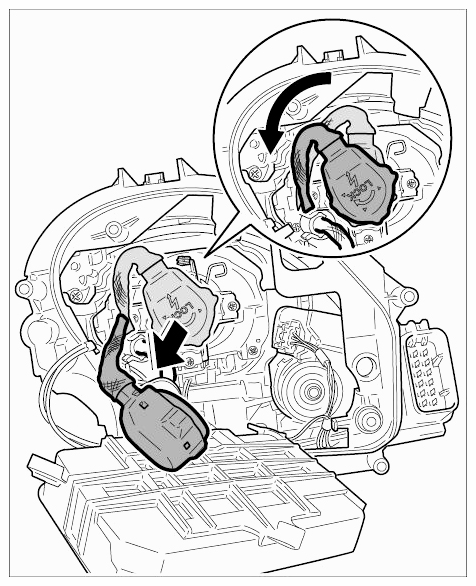

Turn the connector for the gas-discharge headlight anti-clockwise (bayonet lock) and pull it off.

Fig 2: Releasing Gas-Discharge Headlight Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

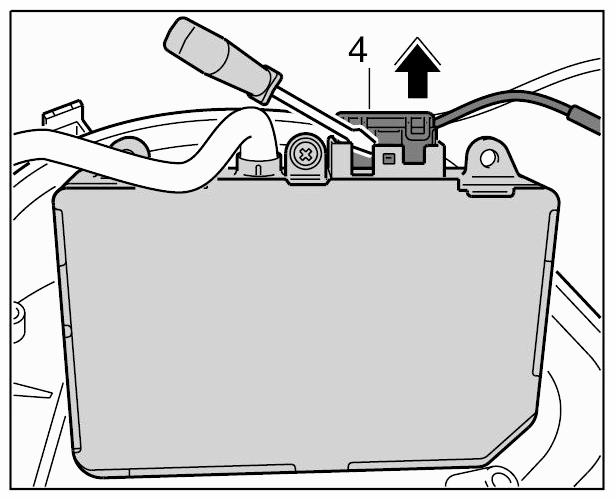

Carefully release and lever out the electric connector -4- on the control unit using a screwdriver.

Fig 3: Releasing Electric Connector Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

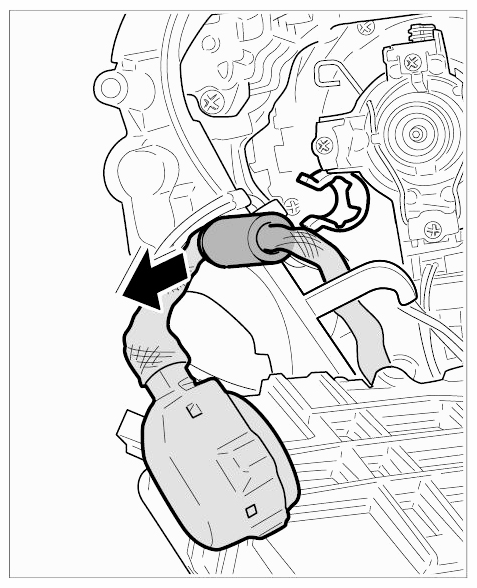

Slide the headlamp unit to one side and pull the high-voltage wire out of the holder.
Unscrew the two fastening screws on the control unit holder and pull the control unit out of the holder.

Fig 4: Disengaging Line On Headlamp Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
