Removing Halogen Bulb

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

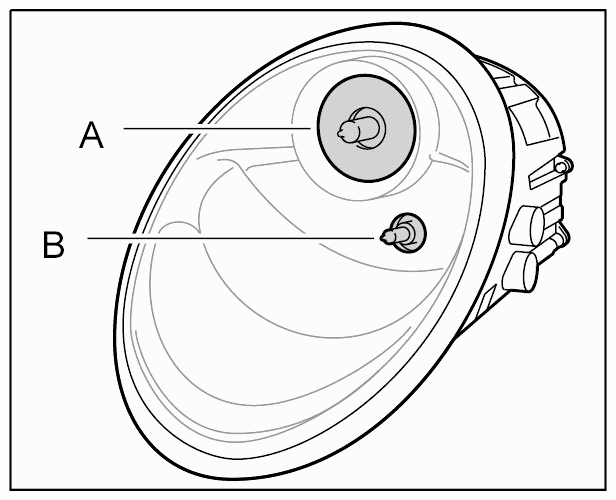

Fig 1: Identifying Halogen Bulb And High Beam Bulb
G09593415Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Halogen bulb
  2. High beam bulb
  1. Disengage securing clip.

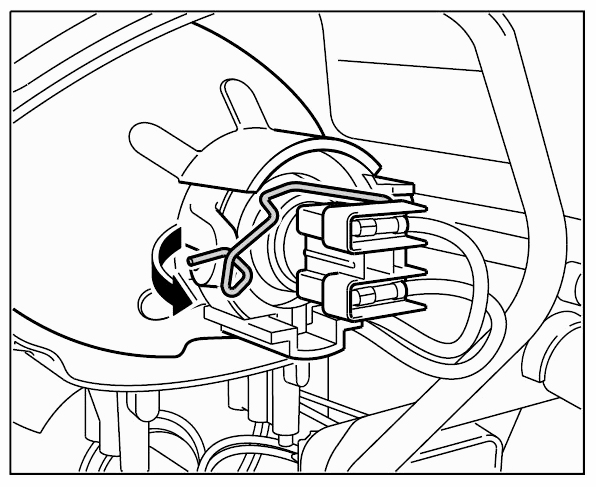

    Fig 2: Disengaging Securing Clip
    G09593416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull electrical connector off bulb and remove bulb.

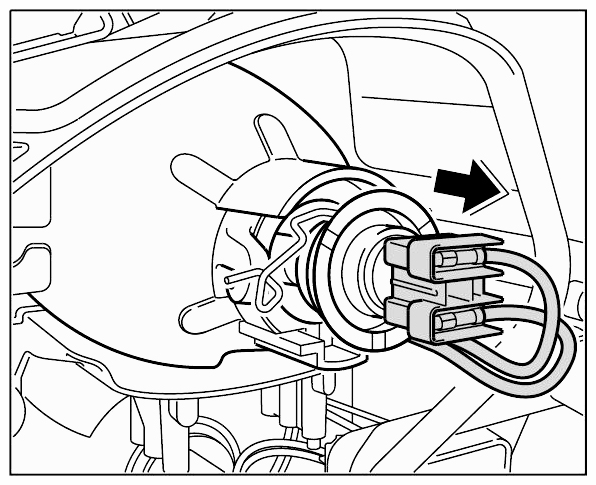

    Fig 3: Pulling Off Electrical Connector
    G09593417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
