Removing Guide Sleeve

WARNING: This page is about a different variant/trim than selected.

Remove release lever -3- with release bearing.
1. 1.1. Unscrew fastening screw -1- on the retaining bracket -2- .
2. 1.2. Remove retaining bracket -2- .
3. 1.3. Remove release lever -3- with release bearing.

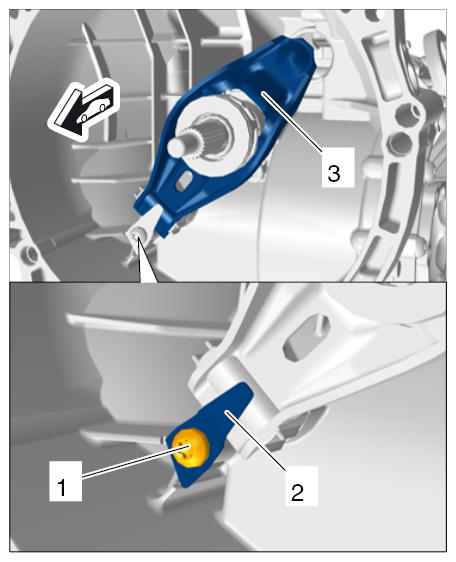

Fig 1: Removing Release Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove guide sleeve -1- .
1. 2.1. Unscrew and remove fastening screws -1- on the cover -2- .
2. 2.2. Remove cover -2- .

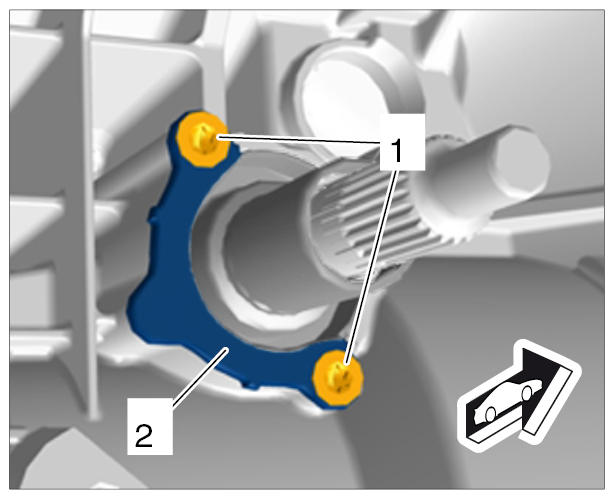

  Fig 2: Removing Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Remove guide sleeve -1- over the transmission input shaft -arrow- .

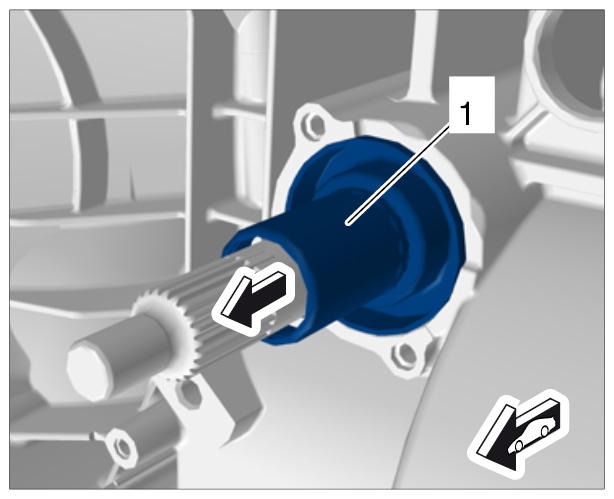

  Fig 3: Removing Guide Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
