Removing Clutch Slave Cylinder

WARNING: This page is about a different variant/trim than selected.

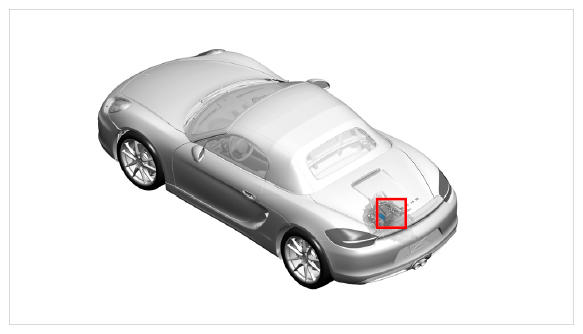

Fig 1: Identifying Clutch Slave Cylinder Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove exterior shift mechanism.

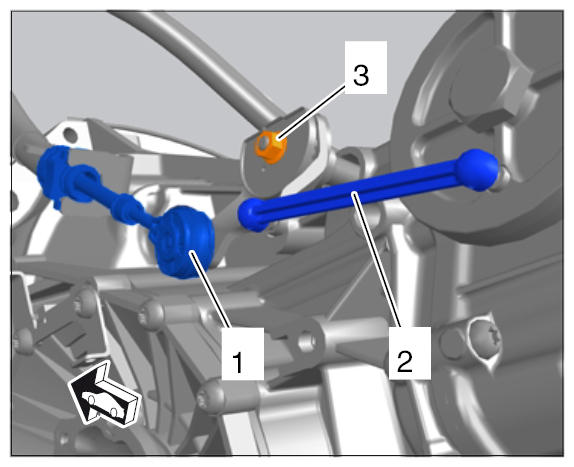

1. 1.1. Lever off the shift cable -1- and connecting rod -2- on the exterior shift mechanism.
2. 1.2. Screw off fastening nut -3- .

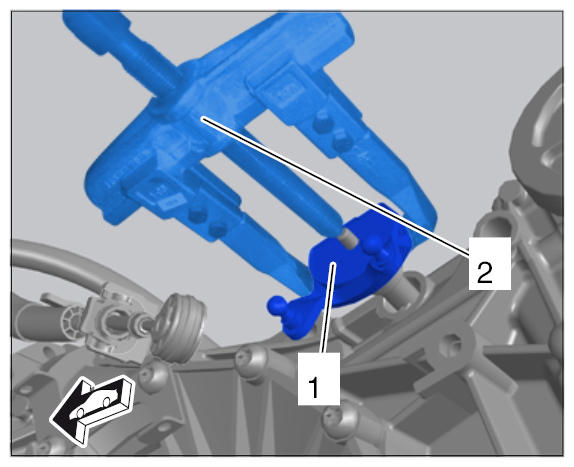

3. 1.3. Pull exterior shift mechanism -1- off the shifting shaft using a puller -2- .

  Fig 2: Exposing Exterior Shift Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Set exterior shift mechanism -1- down on the transmission.
Fig 3: Removing Exterior Shift Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

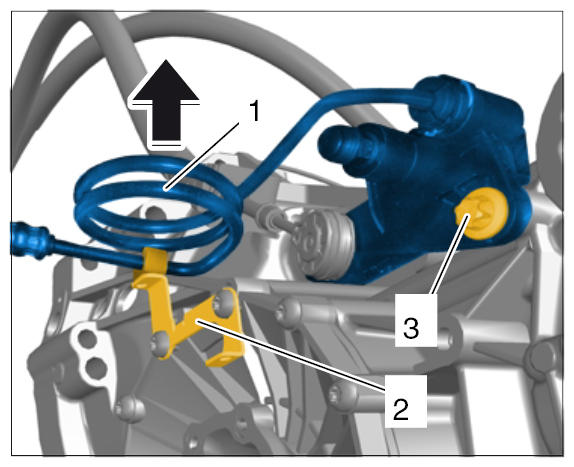

Unclip the clutch line -1- at the bracket -2- (-arrow- ).
Disconnect the clutch line -1- on the clutch slave cylinder.
Unscrew fastening screw -3- .

Fig 4: Releasing Clutch Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

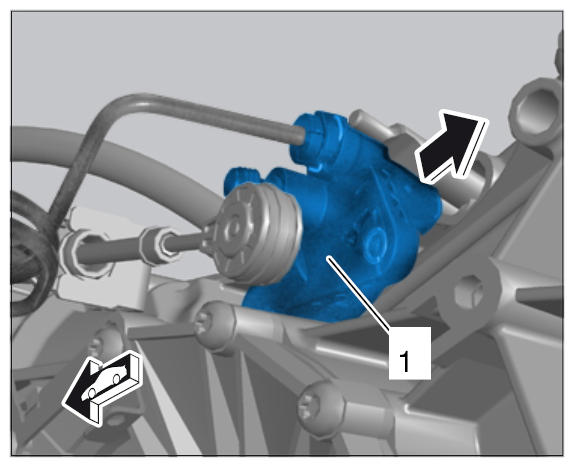

Pull out the clutch slave cylinder -1- (-arrow- ).

Fig 5: Removing Clutch Slave Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
