Installing Clutch Pedal

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

1. Install clutch pedal.

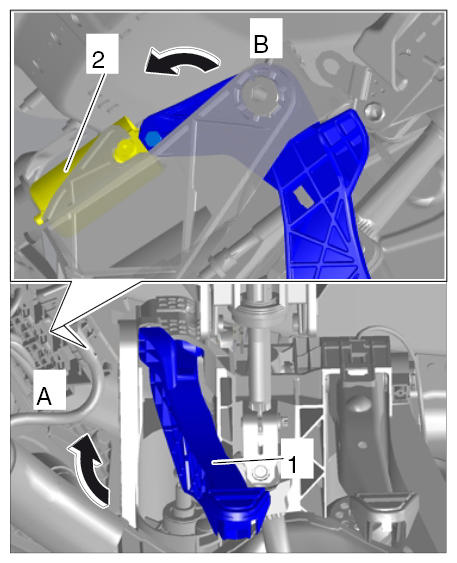

   1. 1.1. Guide the clutch pedal -1-  and clutch power spring assembly -2-  into the pedal console -arrow A-  .
   2. 1.2. Press the clutch pedal -1-  up until the bolts for the clutch power spring assembly -2-  engage -arrow B-  .
      Fig 1: Installing Clutch Pedal

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      The pedal shaft must not be greased during installation!

      The cover on the pedal shaft is coded. This means that the pedal shaft can only be fitted correctly in one specific position.

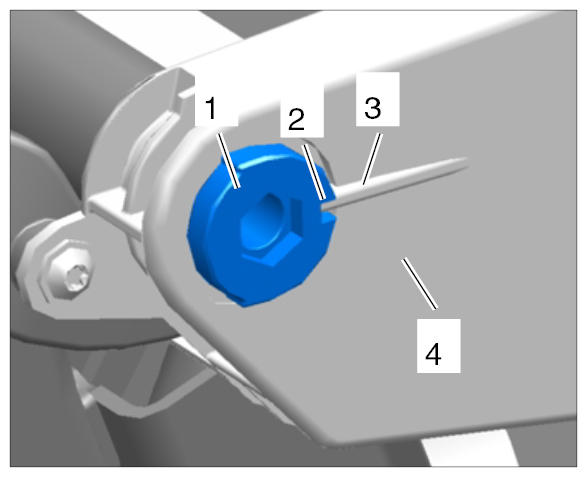

      When sliding in the brake pedal shaft -1-  , make sure that the cut-out -2-  on the brake pedal shaft fits into the guide -3-  on the holder -4-  .

      This is the only way to ensure that the pedal shaft is installed at the correct position and will not turn.

      Fig 2: Positioning Brake Pedal Shaft

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install pedal shaft.

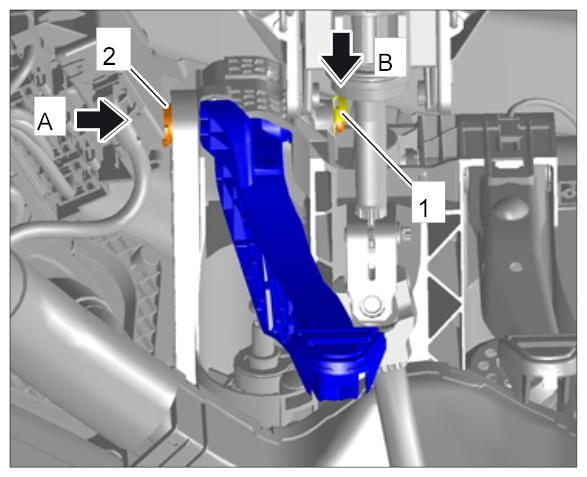

   1. 2.1. Align the clutch pedal with the pedal bearing axle and press the pedal shaft -2-  through -arrow A-  .
   2. 2.2. Press in securing clip -1-  on the pedal shaft -2-  (-arrow B-  ) until it engages securely.
   Fig 3: Installing Pedal Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure the clutch master cylinder.

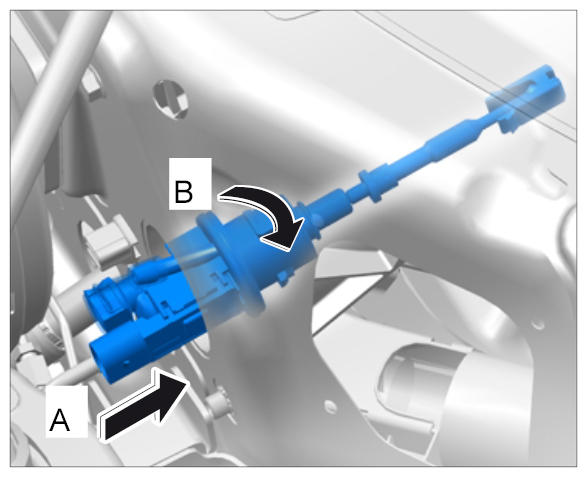

   1. 3.1. Press in clutch master cylinder -arrow A-  and lock it by turning clockwise -arrow B-  . Make absolutely sure that the clutch master cylinder is locked properly!
   Fig 4: Securing Clutch Master Cylinder
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

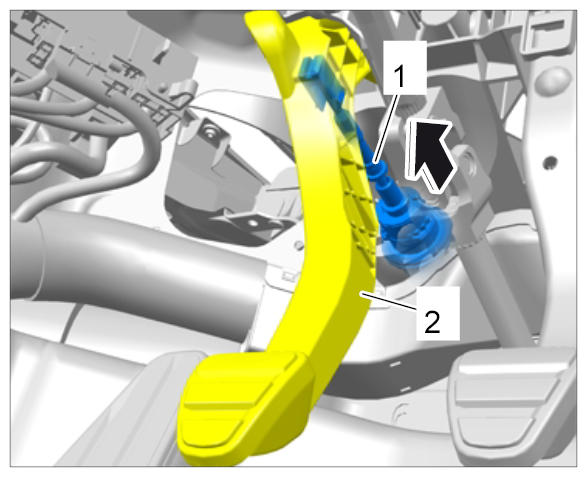

   2. 3.2. Press in retaining clip for push rod -1-  in the clutch pedal -2-  (-arrow-  ) until it clicks into place.
      Fig 5: Engaging Push Rod

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release clutch power spring assembly.

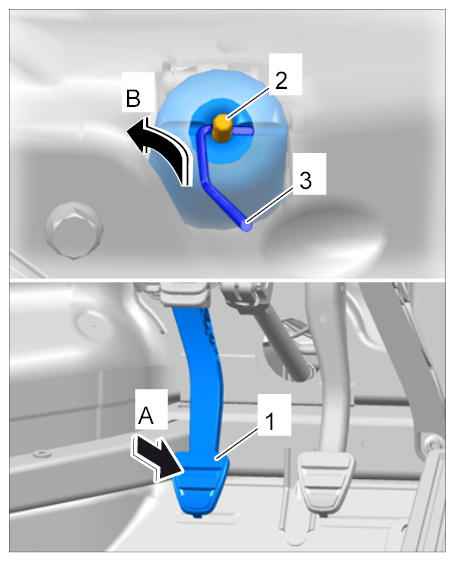

   1. 4.1. Press the clutch pedal -1-  slightly -arrow A-  until the cotter pin -3-  can be pulled out of the clutch power spring axle -2-  (-arrow B-  ).
      Fig 6: Releasing Clutch Power Spring Assembly

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

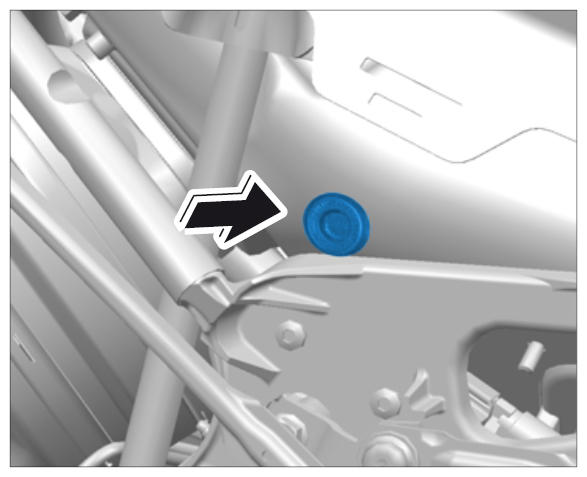

   2. 4.2. Press rubber sleeve into the plenum panel -arrow-  .
      Fig 7: Pressing Rubber Sleeve Into Plenum Panel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
