Replacing Transmission Mount

WARNING: This page is about a different variant/trim than selected.

NOTE: Incorrect handling of components

→ Carefully fit or remove the component.

Mark position of transmission bracket and transmission mount with a colored pen.
Clamp transmission bracket in a vice.
Use Aluminum Clamping Jaws!
Screw off loosened fastening nut -A- on the transmission mount.
1. 3.1. Copy marked position on the transmission mount to the new transmission mount.

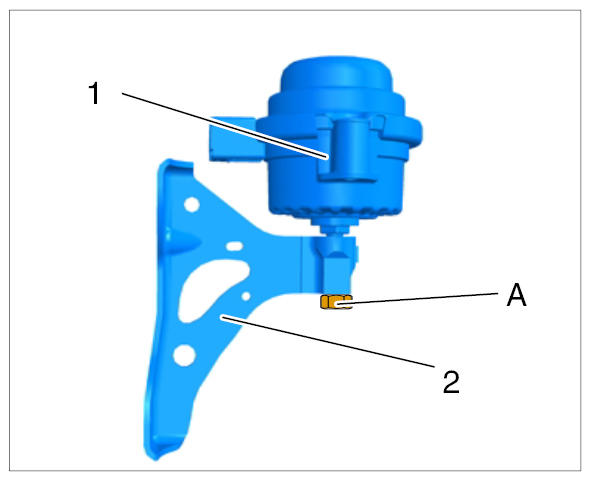

  Fig 1: Identifying Transmission Bracket With Hydraulic Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit new transmission mount and only tighten fastening nut slightly.
1. 4.1. Fit fastening screws on the transmission mount.
