Removing Right Transmission Mount

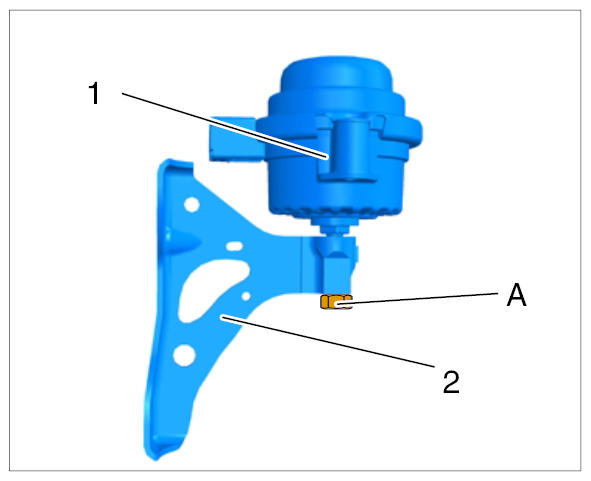

Overview of transmission mount:

1. 1  - Transmission mount
2. 2  - Transmission bracket
3. A  - Nut on transmission mount

Fig 1: Identifying Transmission Bracket With Hydraulic Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. On vehicles with dynamic unit mounts:  Disconnect cable plug on the transmission mount.

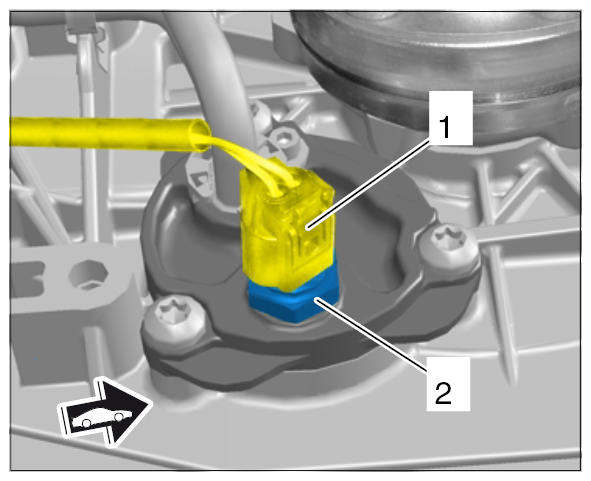

2. Pull off cable plug -1-  on the oil temperature sensor -2-  .
   Fig 2: Identifying Cable Plug On Oil Temperature Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

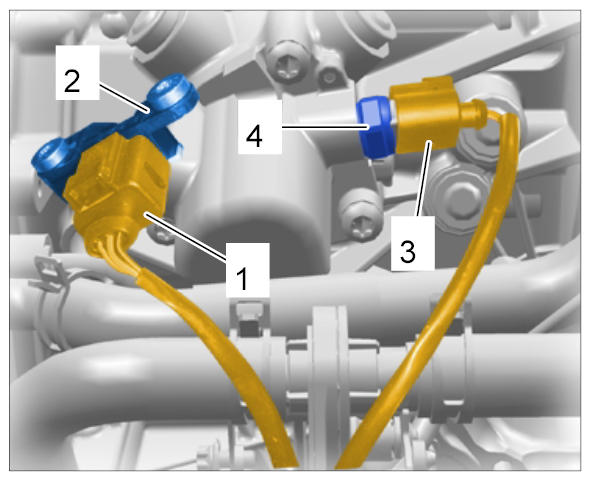

3. Disconnect cable plugs -1 and 3-  on the neutral gear sensor -2-  and on the reversing light switch -4-  .
   Fig 3: Identifying Cable Plugs On Neutral Gear Sensor And Reversing Light Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

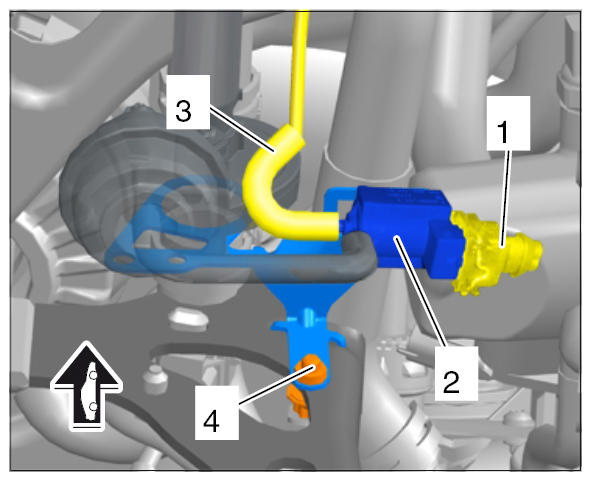

4. Remove control valve -2-  .
   1. 4.1. Pull off cable plug -1-  on the control valve.
   2. 4.2. Pull off vacuum hose -3-  on the control valve.
   3. 4.3. Unscrew fastening screw -4-  and set control valve and holder aside.
      Fig 4: Setting Control Valve With Vacuum Lines And Cable Plug

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

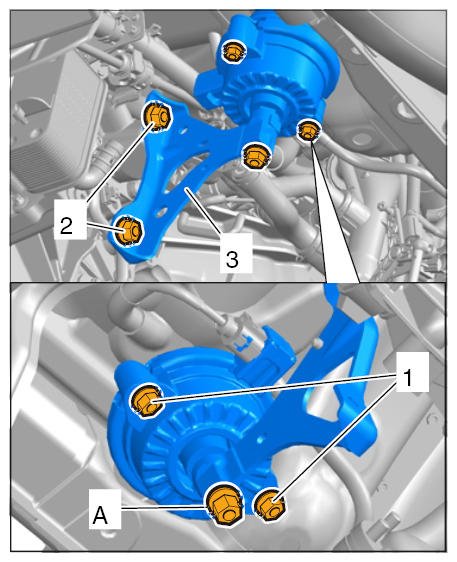

5. Loosen transmission mounts.
   1. 5.1. Screw off fastening nuts -1-  on the transmission mount.
   2. 5.2. Unscrew fastening screws -2-  on the gear support -3-  .
      Fig 5: Identifying Transmission Mount Fasteners

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Lift up fastening screws on the transmission mount and remove transmission mount along with the transmission bracket and electric lines.
