Removing Left Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Overview Of Transmission Mount:

  1. 1  - Transmission mount
  2. 2  - Transmission bracket
  3. A  - Nut on transmission mount
Fig 1: Identifying Transmission Bracket With Hydraulic Mount
G10024806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. On Vehicles With Dynamic Unit Mounts:  Disconnect cable plug -1-  on the transmission mount.
  2. Screw off fastening nuts -2-  on the transmission mount.
  3. Unscrew fastening screws -3-  on the transmission.

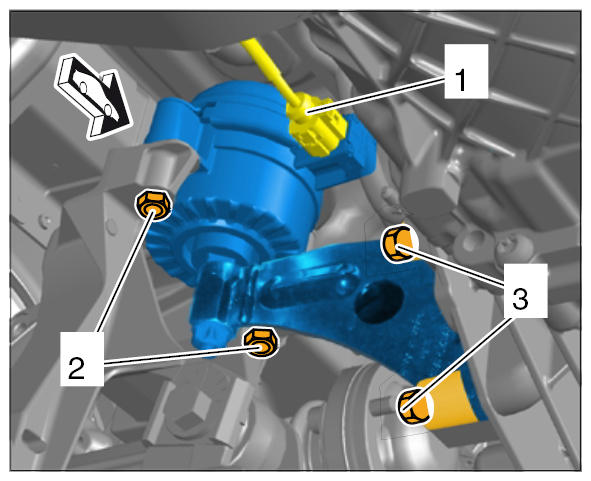

    Fig 2: Identifying Transmission Hydraulic Mount Fasteners
    G10024807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lift up fastening screws on the transmission mount and remove transmission mount and transmission bracket.
