Installing Right Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Fit transmission mount with transmission bracket -3- .
Screw on and tighten fastening nuts -1- .
Tightening Torque 33 Nm
Screw in and tighten fastening screws -2- .
Initial Tightening 30 Nm (22 ft. lbs.)

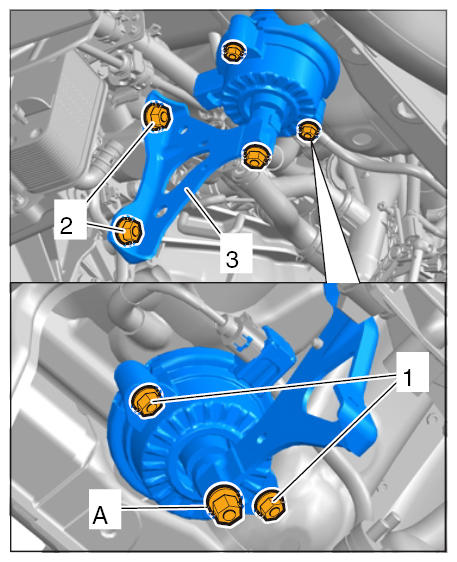

Fig 1: Identifying Right Transmission Mount Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- For new transmission mounts, tighten the fastening nut according to specifications after installing the bracket and securing the transmission mount .
- Counter at the two flats on the transmission bracket while tightening .
If the transmission mount was replaced, tighten fastening nut.
Counter At The Two Flats On The Transmission Bracket!

Tightening torque 85 Nm
Fit control valve -2- and holder.
1. 5.1. Fit control valve holder on the transmission bracket and screw in and tighten the fastening screw -4- .
2. 5.2. Attach vacuum hose -3- to the control valve.
3. 5.3. Connect cable plug -1- to the control valve -2- .

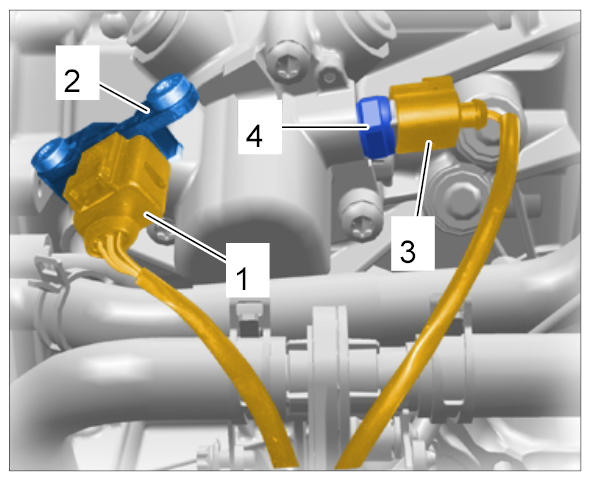

  Fig 2: Securing Control Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plugs -1 and 3- to the neutral gear sensor -2- and fit reversing light switch -4- .

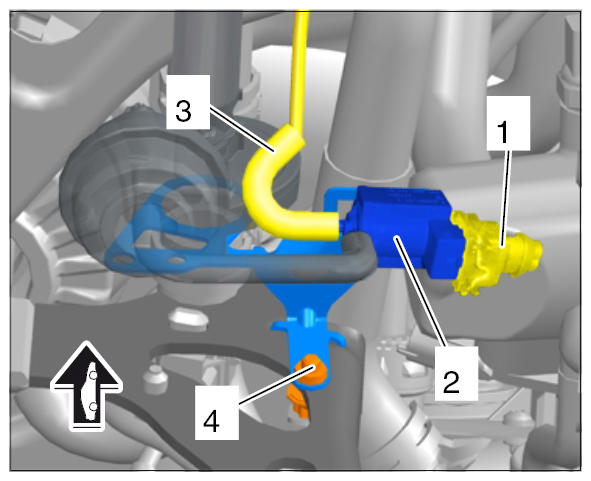

Fig 3: Securing Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On Vehicles With Dynamic Unit Mounts: Connect cable plug to the transmission mount.
