Removing Transmission

WARNING: This page is about a different variant/trim than selected.

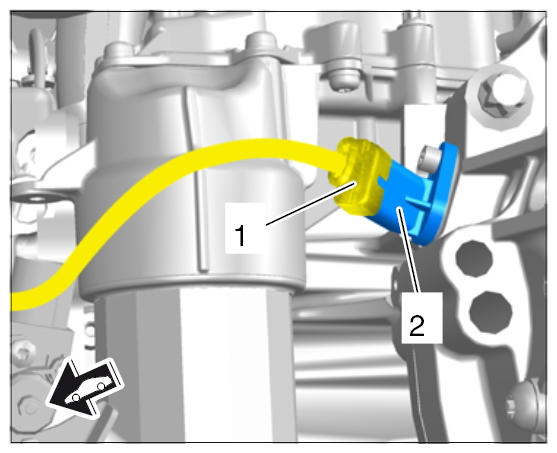

  1. Release electric plug connection -1-  on the crankshaft hall sender -2-  and disconnect it.
    Fig 1: Releasing Crankshaft Hall Sender
    G10024787Courtesy of PORSCHE CARS NORTH AMERICA, INC.

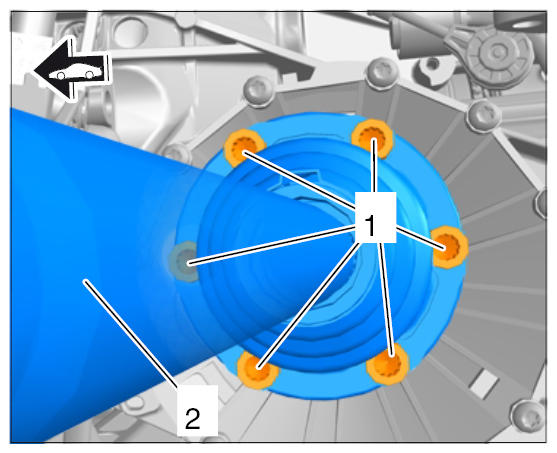

  2. Loosen both drive shafts -2-  on the transmission side at the left and right. → 422119 REMOVING AND INSTALLING DRIVE SHAFT
    1. 2.1. Unscrew fastening screws -1-  on the drive shaft and counter using Adapter Plate 9510/1  .

      Information

      • Protect the drive shafts from mechanical damage  .
    2. 2.2. Lift off drive shaft -2-  on the halfshaft flange and set it aside.
    Fig 2: Loosening Drive Shaft
    G10024788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

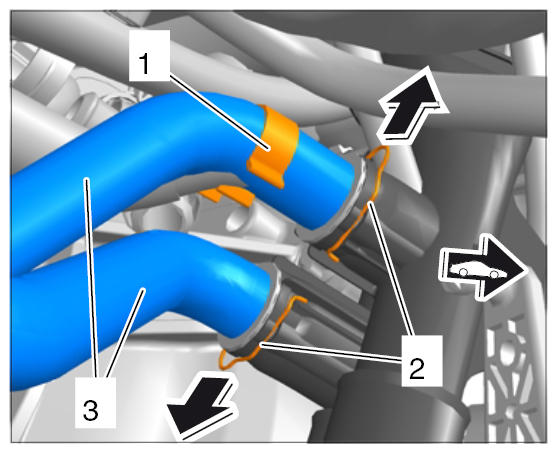

  3. Loosen coolant hoses -3-  .
    1. 3.1. Unclip fixing clip -1-  on the vacuum line.
    2. 3.2. Release locks -2-  on the coolant hoses -3-  (-arrows-  ).
    3. 3.3. Place a container under the vehicle to collect coolant.
    4. 3.4. Pull out coolant hoses -3-  at the connection points.
    Fig 3: Disconnecting Coolant Hoses
    G10024789Courtesy of PORSCHE CARS NORTH AMERICA, INC.

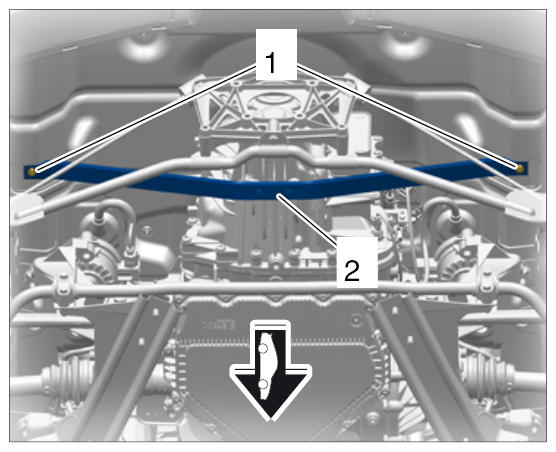

  4. Remove transverse strut -2-  .
    1. 4.1. Unscrew and remove fastening screws -1-  .
    2. 4.2. Remove transverse strut -2-  .
    Fig 4: Removing Transverse Strut
    G10024790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

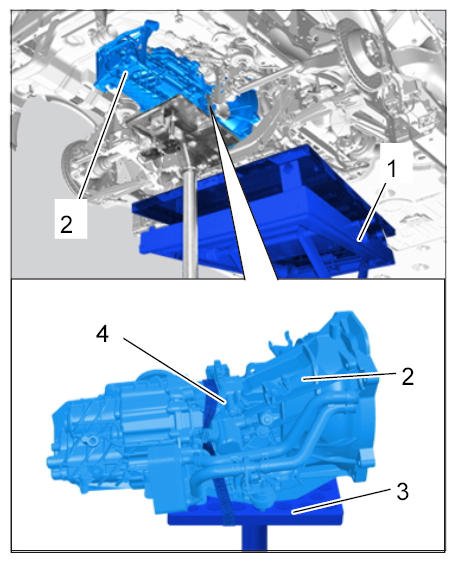

  5. Secure the engine and transmission -2-  .
    1. 5.1. Fix retainer plate in place on the unit elevating platform -1-  .
    2. 5.2. Position the unit elevating platform -1-  under the engine and support the engine.
    3. 5.3. Use a restraining strap -4-  to secure the transmission -2-  on the transmission jack -3-  .
    Fig 5: Securing Transmission And Engine
    G10024791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove transmission.

    Loosening sequence: Loosen screws from the bottom up  .

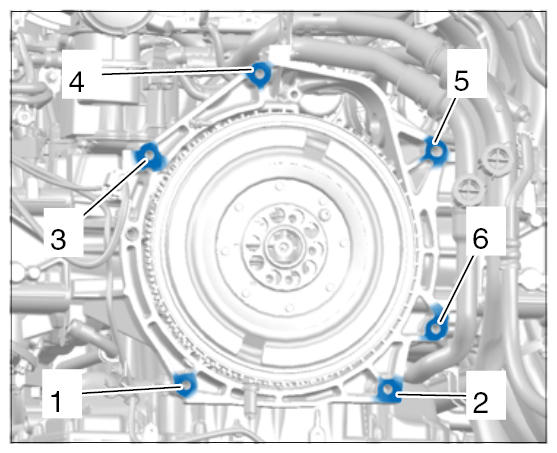

    1. 6.1. First loosen the flange screws -1 and 2-  between the transmission flange and engine and then unscrew them.
    2. 6.2. Loosen and unscrew the remaining flange screws in the following sequence -3, 6 and 5-  and finally loosen and unscrew flange screw -4-  .
      3. Fig 6: Identifying Transmission Bolt Loosening Sequence
      G10024792Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 6.3. Gradually guide the transmission out towards the rear and downwards by lowering the transmission jack.
