Installing Gearshift Bracket

WARNING: This page is about a different variant/trim than selected.
  1. Position gearshift bracket -2-  and screw in and tighten fastening screws -1-  .

    Tightening torque 8 Nm (6 ft. lbs.)

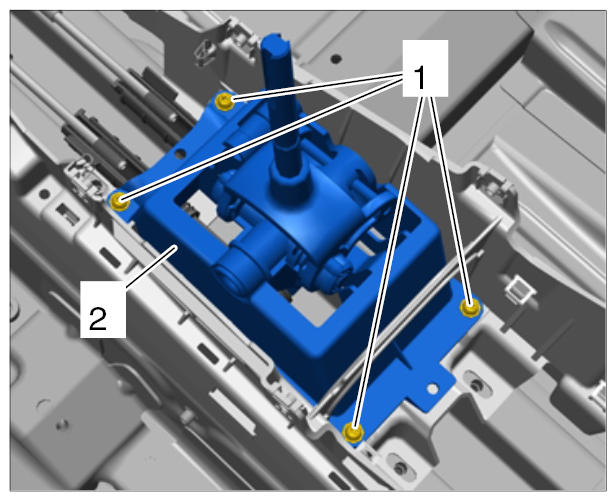

    Fig 1: Identifying Gearshift Bracket
    G10024773Courtesy of PORSCHE CARS NORTH AMERICA, INC.
