Removing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.
  1. Unclip retaining frame for the leather sleeve in an upward direction using an assembly wedge.

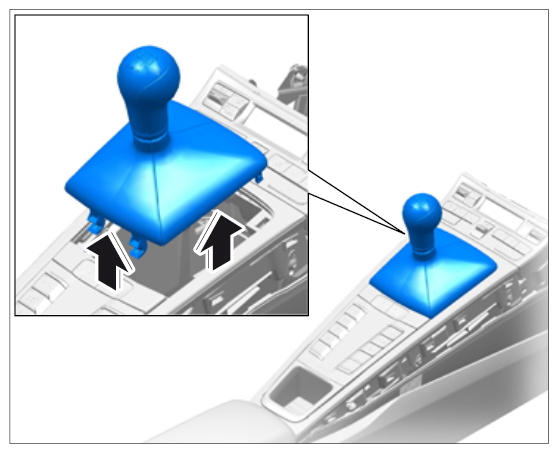

    Fig 1: Unclipping Leather Sleeve
    G10024766Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn the leather sleeve anti-clockwise as far as it will go and pull the shift-lever knob up and off.

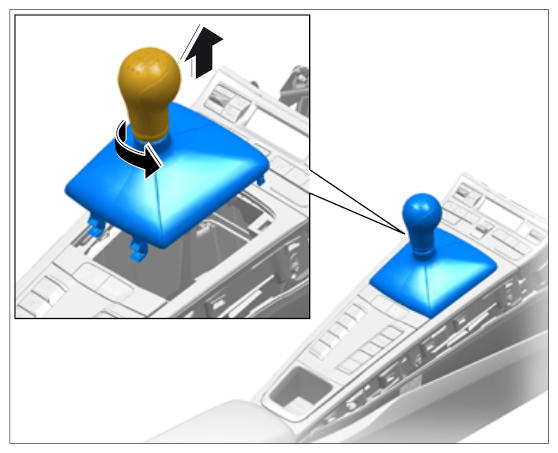

    Fig 2: Turning Leather Sleeve And Pulling Off Shift-Lever Knob
    G10024767Courtesy of PORSCHE CARS NORTH AMERICA, INC.
