Installing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.
  1. Fit the shift-lever knob on the shift lever and turn the leather sleeve clockwise as far as it will go.

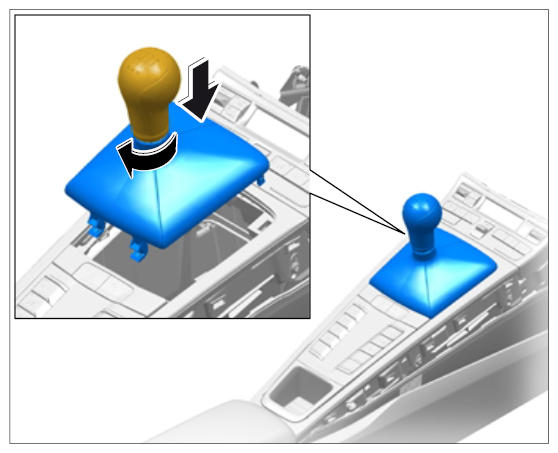

    Fig 1: Fitting Shift-Lever Knob And Turning Leather Sleeve
    G10024768Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip retaining frame of the leather sleeve into the center console.

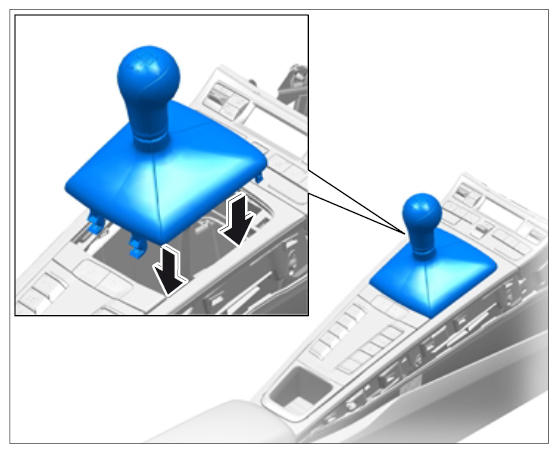

    Fig 2: Clipping Retaining Frame Of Leather Sleeve Into Centre Console
    G10024769Courtesy of PORSCHE CARS NORTH AMERICA, INC.
