Draining Transmission Oil

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

  1. Drain transmission oil.
    1. 1.1. Unscrew and remove filler plug -1-  on manual transmission.
    2. 1.2. Unscrew and remove drain plug -2-  on manual transmission and drain transmission oil.

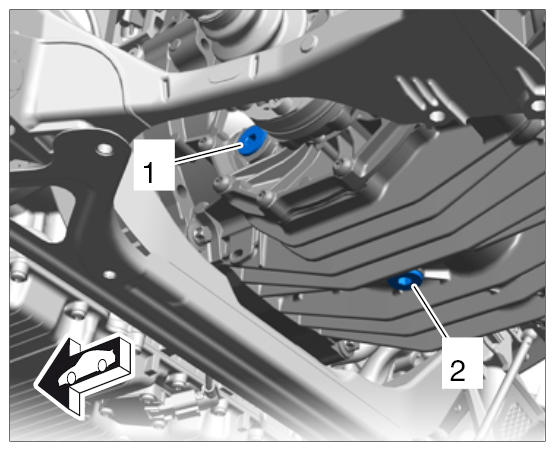

    Fig 1: Identifying Filler And Drain Plugs On Transmission
    G10024764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
