Removing Support Plate

  1. Unscrew fastening screws and fastening nuts on the diagonal braces -1-  and remove diagonal braces.

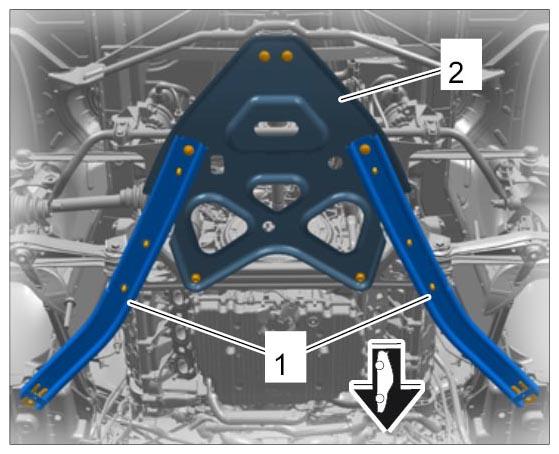

    Fig 1: Identifying Support Plate With Fastening Screws
    G10023544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws on the support plate -2-  and remove support plate.
