Adjusting Rear-Axle Camber

Then tighten lock nut on camber eccentric adjuster to 100 Nm (74 ftlb.).

1. Camber eccentric adjuster
2. Toe eccentric adjuster

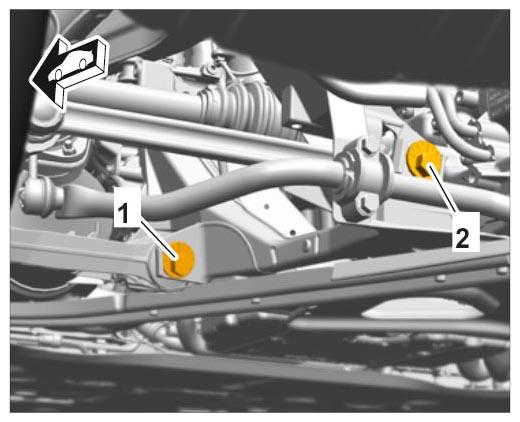

Fig 1: Identifying Rear-Axle Camber And Toe Eccentric Adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
