Adjusting Front-Axle Camber

Service position: Lift up the cover and engage the yellow support in the luggage compartment lid -1-  .

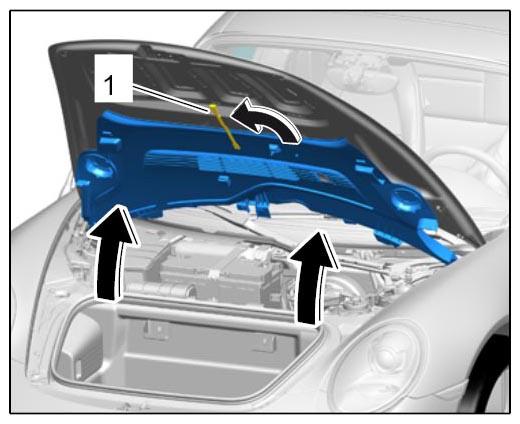

Fig 1: Lifting Service Position Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The spring-strut mount is made of aluminium, so do not tap it, but use a suitable lever to prevent damage  .

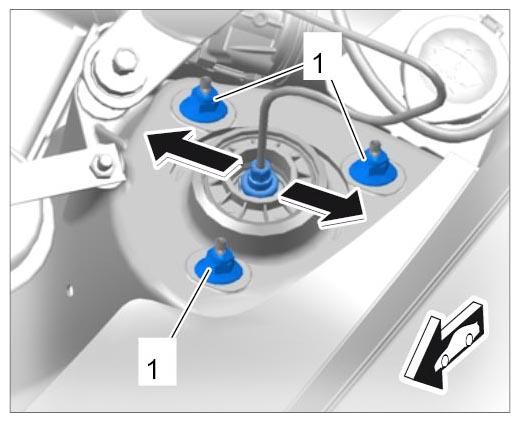

Fig 2: Adjusting Front-Axle Camber

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Loosen three fastening nuts -1-  on the spring-strut supporting mount and move the spring strut as required -arrows-  .
2. 2.2. Tighten lock nuts -1-  to 33 Nm (24 ftlb.).
