Removing Glove Compartment Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

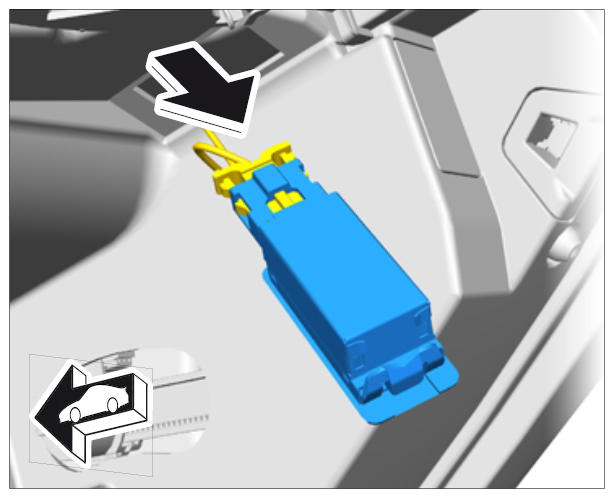

  1. Plug in electric plug connection for the glove compartment light -arrow-  until the connector locks securely.
    Fig 1: Installing Glove Compartment Light Electric Plug Connection
    G09999349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

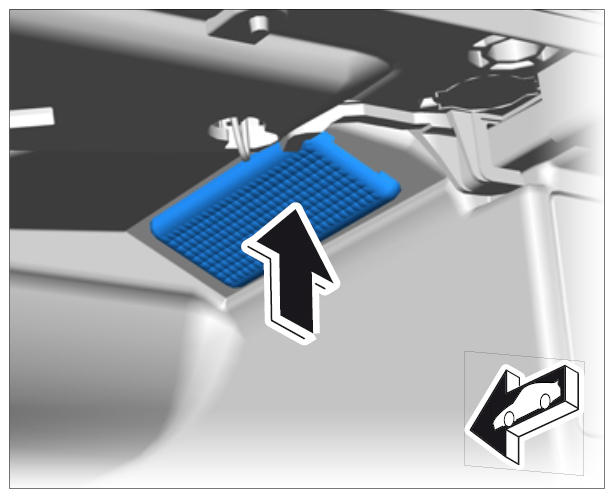

  2. Press the glove compartment light into the glove compartment trim panel -arrow-  .
Fig 2: Fitting Glove Compartment Light
G09999350Courtesy of PORSCHE CARS NORTH AMERICA, INC.
