Removing and installing rear angle sensor for automatic headlight beam adjustment: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the rotary lever of the linkage with the second open-ended wrench and detach. Push back the rubber cover over the electrical plug connection and detach the plug connection from the angle sensor.

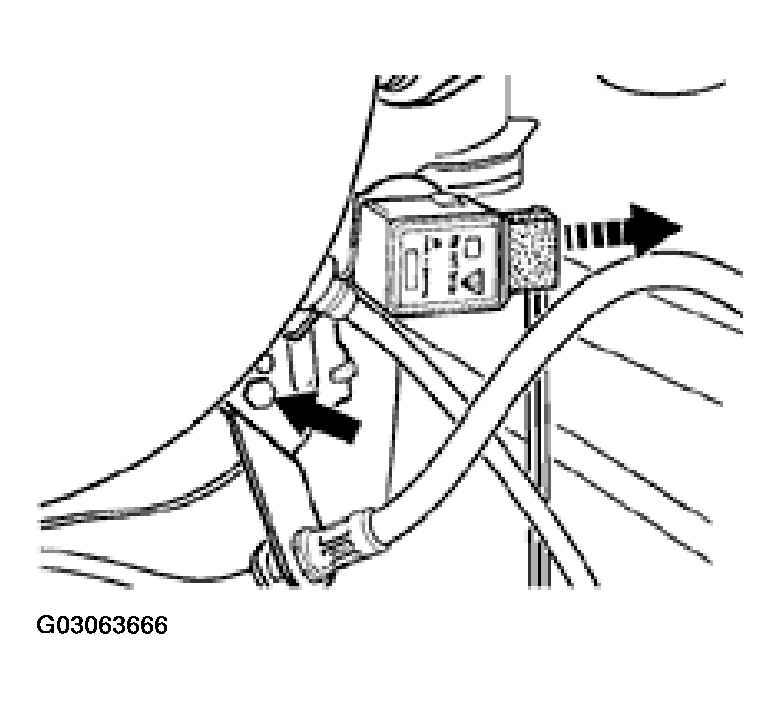

    2. Fig 1: Detaching Plug Connection From Rear Angle Sensor
    G03063666Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Detach the retaining bracket for the angle sensor, combination wire and brake line from the body.
  3. Detach the angle sensor from the retaining bracket and remove it.
