Removing and installing front angle sensor for automatic headlight beam adjustment: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove front underside panel.
Hold the rotary lever of the linkage with the second open-ended wrench and detach. Push back the rubber cover over the electrical plug connection and detach the plug connection from the angle sensor.

Fig 1: Detaching Plug Connection From Front Angle Sensor
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Detach the retaining bracket for the angle sensor from the side member from below.

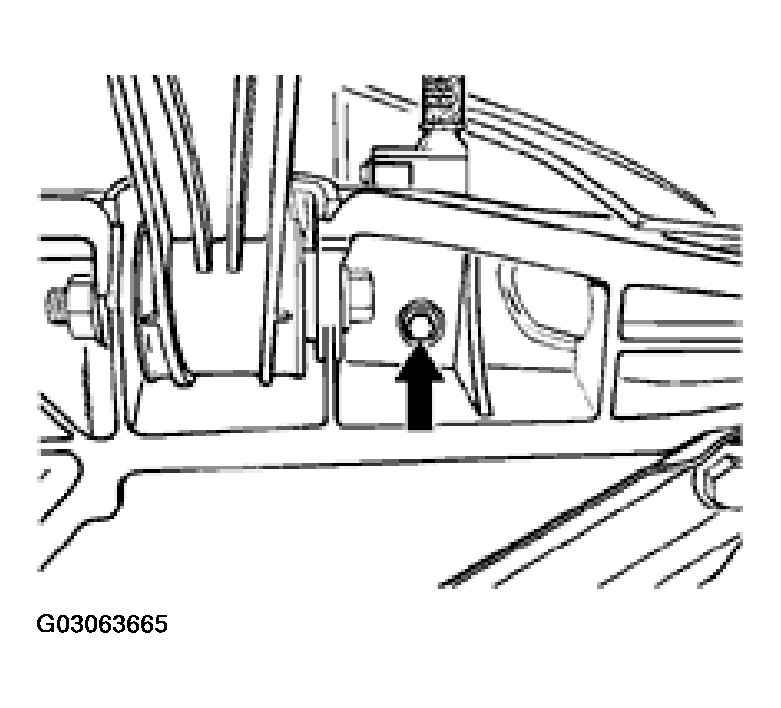

Fig 2: Detaching Retaining Bracket For Front Angle Sensor From Side Member
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Detach the angle sensor from the retaining bracket and remove it.
