Assembling Remote Control

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

In the event of a complaint (remote control buttons too easily pressed), the silicone pad and buttons can be replaced with modified spare parts.

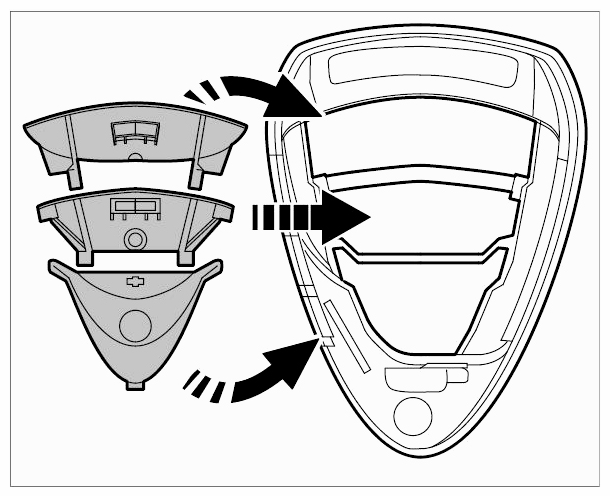

Engage new buttons in the remote control housing.

Fig 1: Engaging Buttons In Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

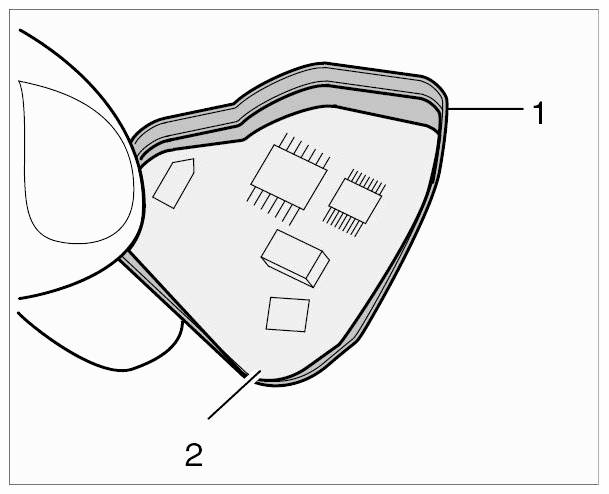

Insert PCB -2- into the new silicone pad -1- .

Fig 2: Inserting Silicone Pad Using PCB In Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

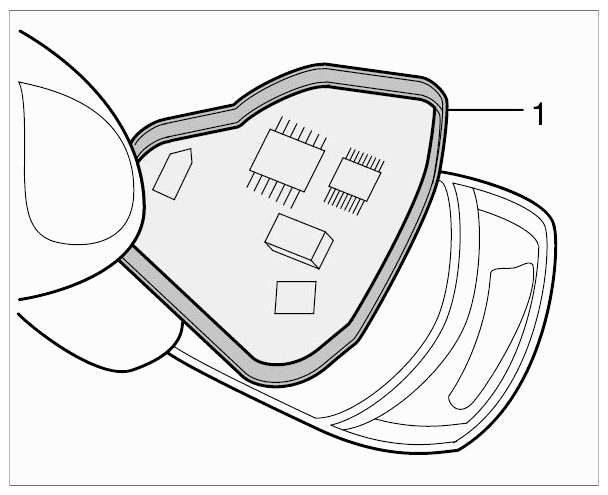

Insert silicone pad -1- with PCB into the remote control housing.

Fig 3: Removing Silicone Pad From Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

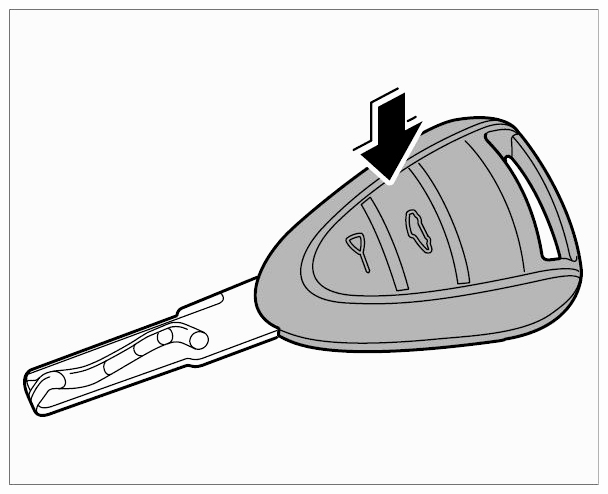

Position the cover on the bottom part of the remote control and press together until the cover clicks into place.

Fig 4: Installing Cover Of Remote Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Test the remote control by pressing all the buttons one after the other.
