Removing Front Brake Disc
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Installation of brake pads with the wrong brake pad quality
- Longer braking distance
- More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Catalogue.
→ Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.
→ Replace the brake discs on each axle as soon as the brake pad wear limit is reached.
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
→ Use two assembly pins when removing and fitting the wheel.
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
Information
- In order to gain better access for removal of the brake calliper, it is beneficial to turn the wheels fully either to the right or the left.
- Remove wheel. → Removing Wheel .

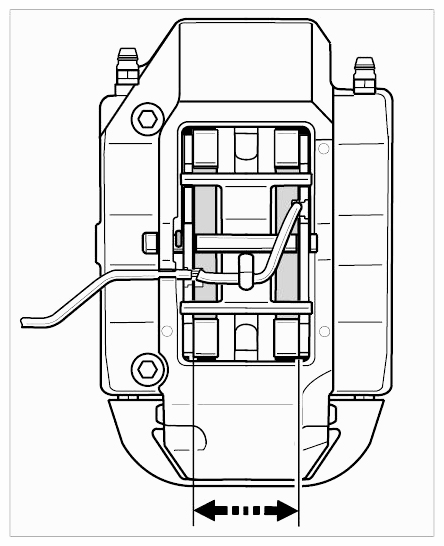

- Push brake pads back slightly and evenly using the piston resetting fixture Nr.144 (-direction arrow- ). Make sure that no brake fluid runs out of the supply tank - remove brake fluid by suction if necessary.
- Loosen brake hose bracket at the wheel carrier.
Open combination plug connection at the wheel carrier and disconnect connector for brake-pad wear indicator.
- Remove brake calliper at the wheel carrier and hang it in a suitable place in the wheel housing. Do not open the brake hydraulic system!
- Remove brake disc after unscrewing the fastening screws. If necessary, remove the brake disc by tapping it gently with a rubber hammer.
