Removing Brake Pedal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Remove brake light switch.
Release brake light switch -1- by turning it 90° and pull it out of the installation opening.

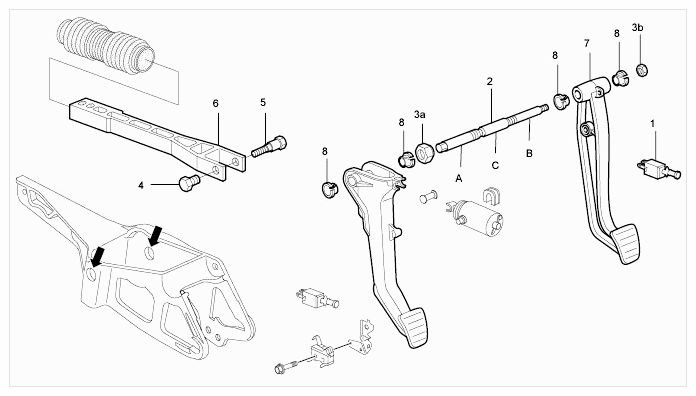

Fig 1: Exploded View Of Brake Pedal Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect brake pushrod from brake pedal.

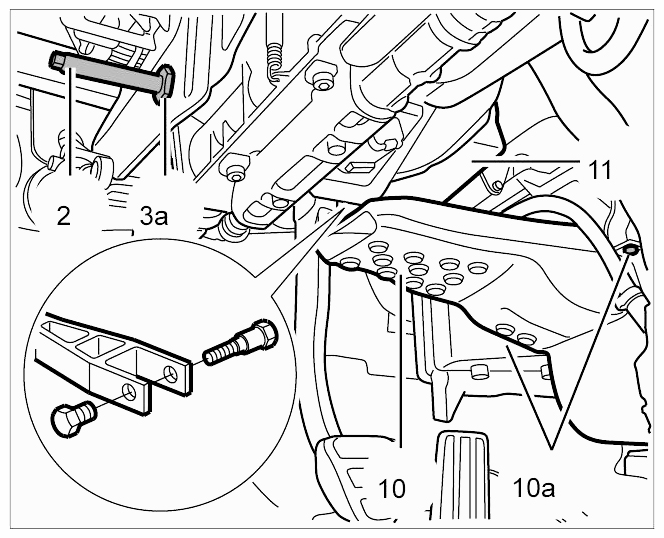

Remove bolt and threaded bushing, see -Inset- .

Fig 2: Identifying Bolt And Threaded Bushing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pedal axle.

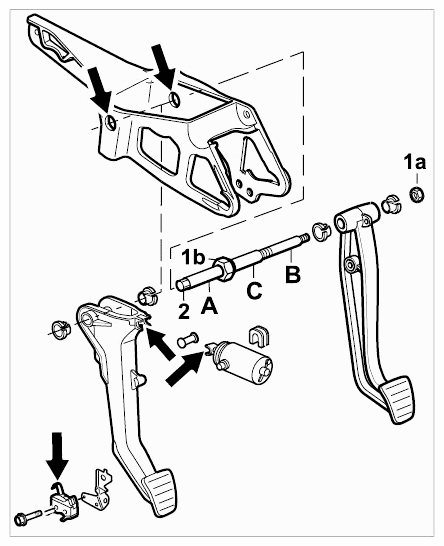

Screw out and remove lock nut -1b- and nut -1a- as well as pedal axle -2- .

Fig 3: Locating Pedal Axle Lock Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out brake pedal.
Turn the brake pedal and brake pushrod as required, see -Inset- .

Fig 4: Identifying Bolt And Threaded Bushing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
