Installing Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The 911 GT2 (997) anti-roll bar can be installed on the 911 GT3 and GT3 RS (997) (different diameters).

Anti-roll bar diameter (installed as standard): 911 GT3/GT3 RS = 23.6 x 3.5 mm (0.93 x 0.14 inches)/911 GT2 = 25.2 x 4.4 mm (0.99 x 0.17 inches).

Install rear anti-roll bar.
Always tighten the connecting links (suspension/stabilizers) in three steps (Step 1: tighten to 50 Nm (37 ftlb.). Step 2: loosen by 90 degrees. Step 3: tighten to 65 Nm (48 ftlb.))!

On 911 GT vehicles (adjustable anti-roll bar), check the position of the connecting links (suspension/stabilizer) at the anti-roll bar (GT3/GT3 RS/GT2). Figure shows the position -2- .

The setting/position is specified in the following 4400TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT

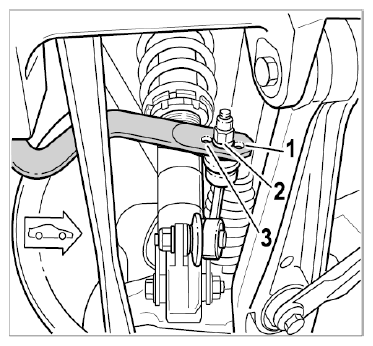

Fig 1: Identifying Adjustable Rear Anti-Roll Bar (911 GT Vehicles)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Engage anti-roll bar on the connecting links (suspension/stabilizer) -2- and then secure on the rear axle carrier using two hexagon-head bolts -1- on each. → Tightening torque: 23 Nm (17 ftlb.)

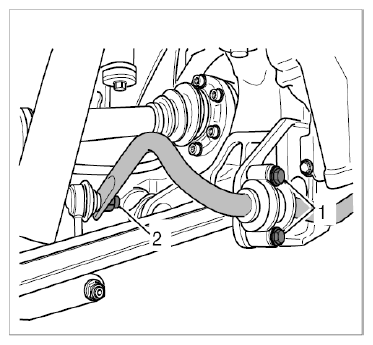

  Fig 2: Identifying Anti-Roll-Bar Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fit new M10 collar nuts on the conn↓ecting link joint -2- . Counter with a Torx socket-wrench insert when tightening → Anti-roll bar to connecting link . Observe 3-step tightening procedure.
  Step 1: → Initial tightening torque: 50 Nm (37 ftlb.)

  Step 2: → Loosen by 1/4 turn after initial tightening: Loosen by 90°

  Step 3: Tighten to 65 Nm (48 ftlb.). → Final tightening torque: 65 Nm (48 ftlb.)

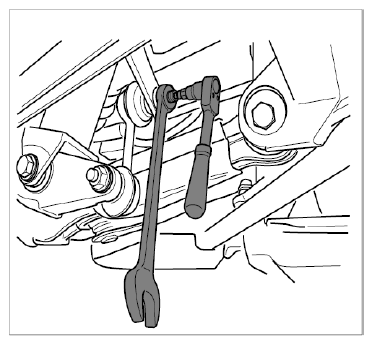

  Fig 3: Identifying Anti-Roll Bar To Connecting Link
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
