Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

After replacing a tie rod, it is important to check whether the software version is identical on both sides or whether the ordered spare part has a lower software version.
To do this, check the software version of both rear-axle steering adjusters (tie rods) using the PIWIS Tester ("Identification" > "Software version").
If they are different and if one software version is less than "1006", use the flash code "M6J3U" to program the rear-axle steering to the same (latest) software version.

Information

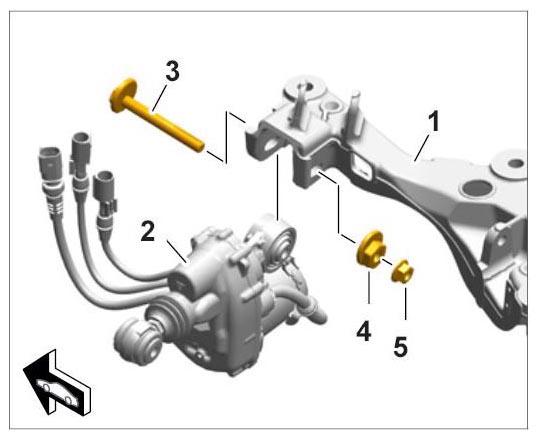

The tie rod (rear-axle steering adjuster) -2- can only be correctly installed when the rear-axle carrier side section -1- is removed.

Fig 1: Identifying Tie Rod Components (Rear-Axle Steering Adjuster)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Raise the vehicle.
→ 4X00IN LIFTING THE VEHICLE .
Remove the wheel.
→ Removing Wheel 1.

→ 440519 REMOVING AND INSTALLING WHEEL with central bolt.
Remove cover for rear underbody.
→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .

On the 911 GT3 and Cabriolet , also remove the support plate.

→ 421419 REMOVING AND INSTALLING SUPPORT PLATE .

On the 911 GT3, remove the protective plate for engine

→ 108019 REMOVING AND INSTALLING ENGINE GUARD
Remove rear wheel housing liner. → 536919 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER .
Remove rear-axle cross member.
→ 420619 REMOVING AND INSTALLING REAR-AXLE CROSS MEMBER .
Remove wheel bearing housing with drive shaft fitted.
In other words: Contrary to the description → 425219 REMOVING AND INSTALLING REAR WHEEL BEARING HOUSING , loosen the drive shaft at the transmission (rather than removing it from the wheel bearing housing).
