Removing Rear Tie Rod (Toe Control Arm)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

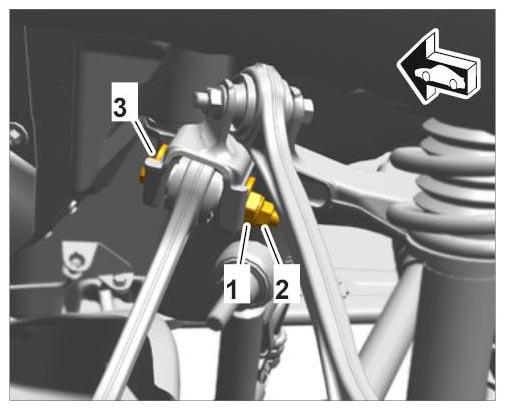

Mark position of eccentric washer -1- with respect to the rear-axle carrier side section (toe adjustment).
Then loosen the lock nut -2- on the toe control arm. Counter at the eccentric screw -3- at the same time.
1. Eccentric washer
2. Lock nut
3. Eccentric screw

  Fig 1: Identifying Eccentric Washer Marking Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

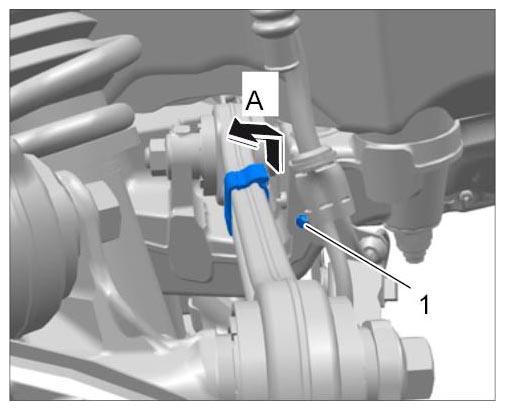

Remove self-levelling sensor (height sensor).

Fig 2: Removing Self-Levelling Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unscrew fastening screw -1- from the self-levelling sensor holder.
2. 2.2. Unclip holder -A- and remove it from the rear-axle trailing arm.

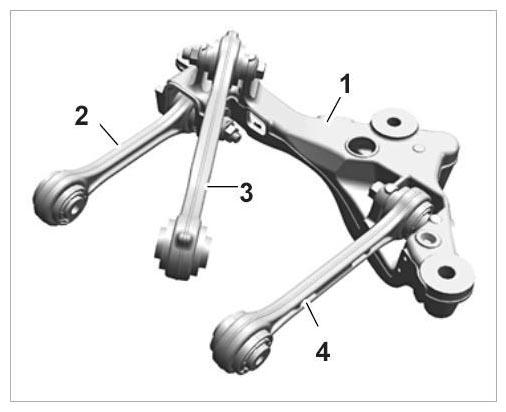

Remove rear-axle carrier side section -1- together with the toe control arm -2- and trailing arms -3 und 4- .

Fig 3: Identifying Rear-Axle Carrier Side Section With Trailing Arms
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

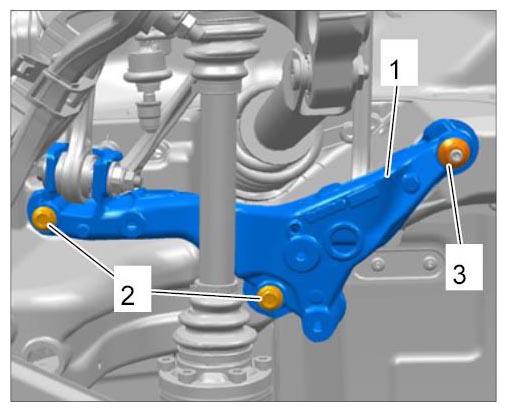

1. 3.1. Unscrew fastening screws -2- and fastening nuts -3- from the rear-axle carrier side section -1- .

  Fig 4: Identifying Rear-Axle Carrier Side Section
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Remove rear-axle carrier side section -1- by pulling it downwards.

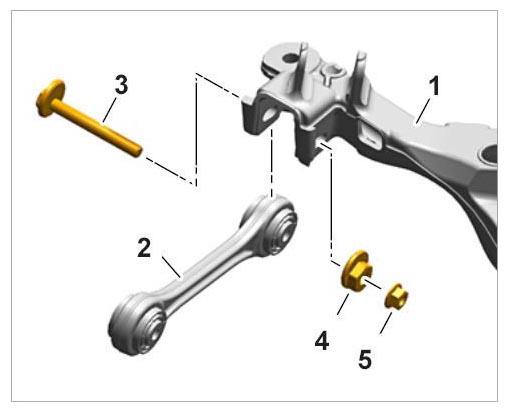

Remove toe control arm -2- on the rear-axle carrier side section -1- .

Fig 5: Removing Toe Control Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
