Removing Reflector Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

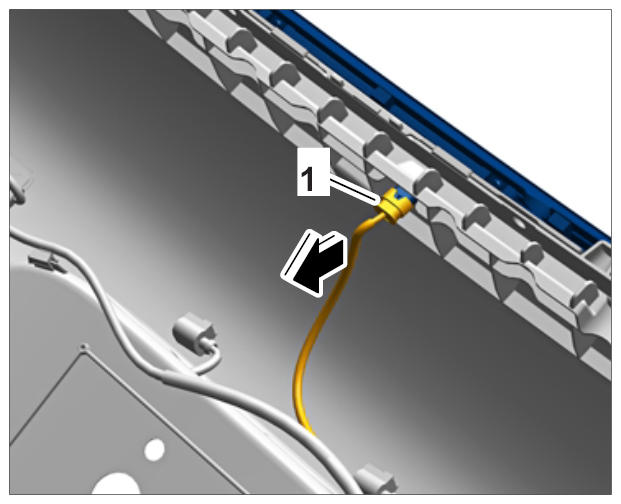

Release electric plug connection -1- and pull it off -A- .

Fig 1: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

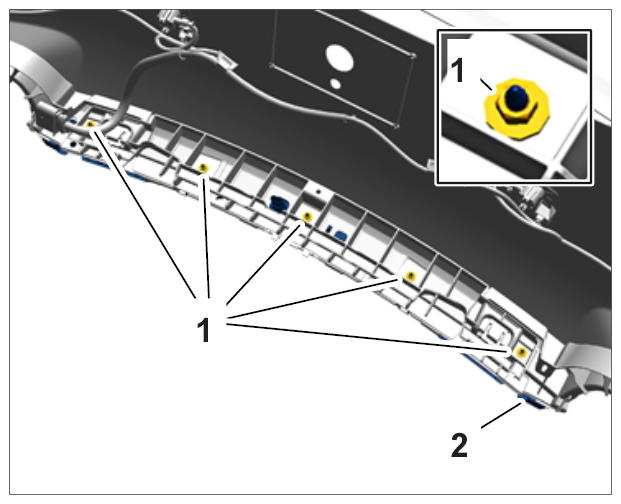

Unscrew fastening nuts -1- for the reflector cover -2- and remove reflector cover from the rear apron.

Fig 2: Removing Reflector Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
