Removing Tail Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Extend rear spoiler.
1. 1.1. Switch on ignition.
2. 1.2. Open the rear spoiler completely by pressing the button in the center console.
3. 1.3. Switch off ignition and remove ignition key.

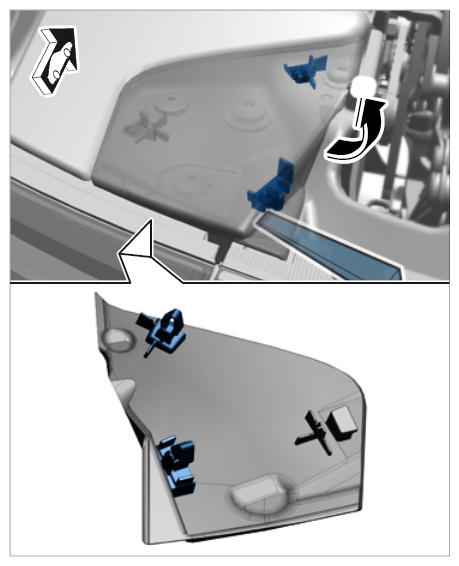

Carefully unclip cover on the mounting bracket using a plastic wedge as shown -arrow- and remove it.

Fig 1: Removing Mounting Bracket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

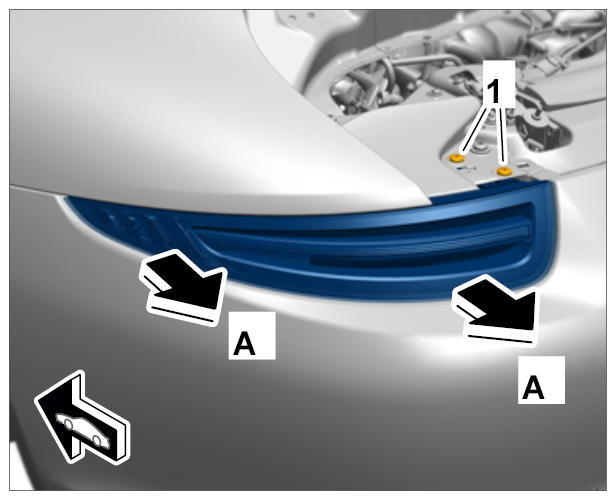

Unscrew fastening screws -1- for the tail light and pull the tail light out as far as required until the connector is accessible -A- .

Fig 2: Pulling Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric connector for the tail light.
