Adjusting Rear Axle Toe

→ After working on wheel suspension parts, when replacing the steering-angle sensor, and after changing the wheel alignment values, calibrate the steering-angle sensor using the Porsche System Tester. → 456005 INITIALIZING AND CALIBRATING STEERING-ANGLE SENSOR

→ Keep the front wheels in straight-ahead position on the measuring platform during calibration.

→ Check the actual value of the steering-angle sensor after suspension alignment where no changes were made to the wheel alignment values.

Information

For reasons of accessibility, the screw head at the eccentric screw for the toe cannot be turned. It can be adjusted at the nut side -2-  by attaching another larger hexagon with an eccentric washer -1-  (a/f 26) to it. The toe can be adjusted on this in the usual way.

When tightening the nut -2-  to the specified torque, always counter at the large hexagon -1-  .

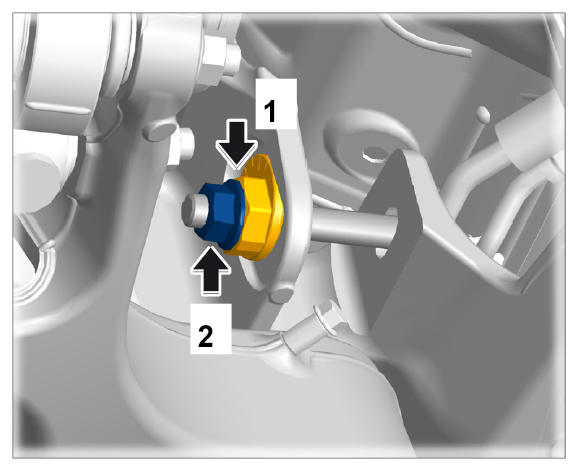

Fig 1: Identifying Rear-Axle Toe Eccentric Nut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Specified tightening torque for lock nut on toe eccentric adjuster -1-  : Tightening torque 100 Nm (74 ftlb.)

The toe is adjusted at the toe eccentric adjuster -1-  !

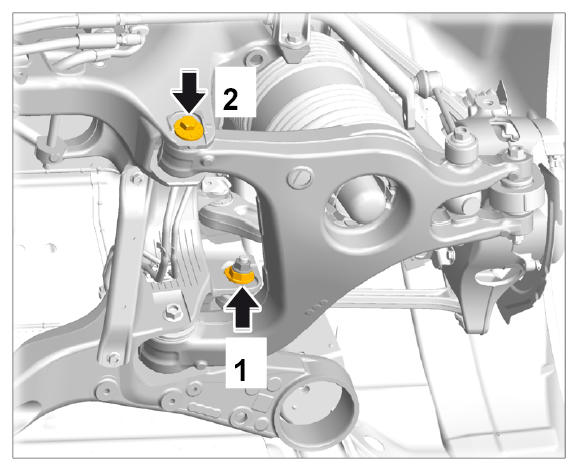

Fig 2: Adjusting Camber And Toe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• After loosening fastening nut, turn toe eccentric -1-  as required.
